Kawasaki Models M8 Highsider Bar End Mirror Adapters

HIGHSIDER handle bar adapter suitable for fitting bar end mirrors & weights with an M6 bolt to various Kawasaki models M8 internal handlebar fittings.

These special handle bar adapter is suitable for mounting various HIGHSIDER handlebar end weights, lever guards and handlebar mirrors on the original Kawasaki handlebar.

The M8 x 1.25 threaded sleeves with M5 internal thread are screwed into the existing thread in the handlebar.

The M6 bolts used on the HIGHSIDER handlebar accessories are then replaced with the M5 x 30 mm bolts provided, securing the fitting.

Dimensions

Threaded sleeves;

Outside: M8 x 1.25

Inside: M5 x 30mm

Washer:

Outer diameter: 15 mm

Inner diameter: 5.3 mm

Adapter screw: M5 x 30 mm

Distance washer:

Diameter: 28 mm

Thickness: 8 mm

Hole: 5.3 mm

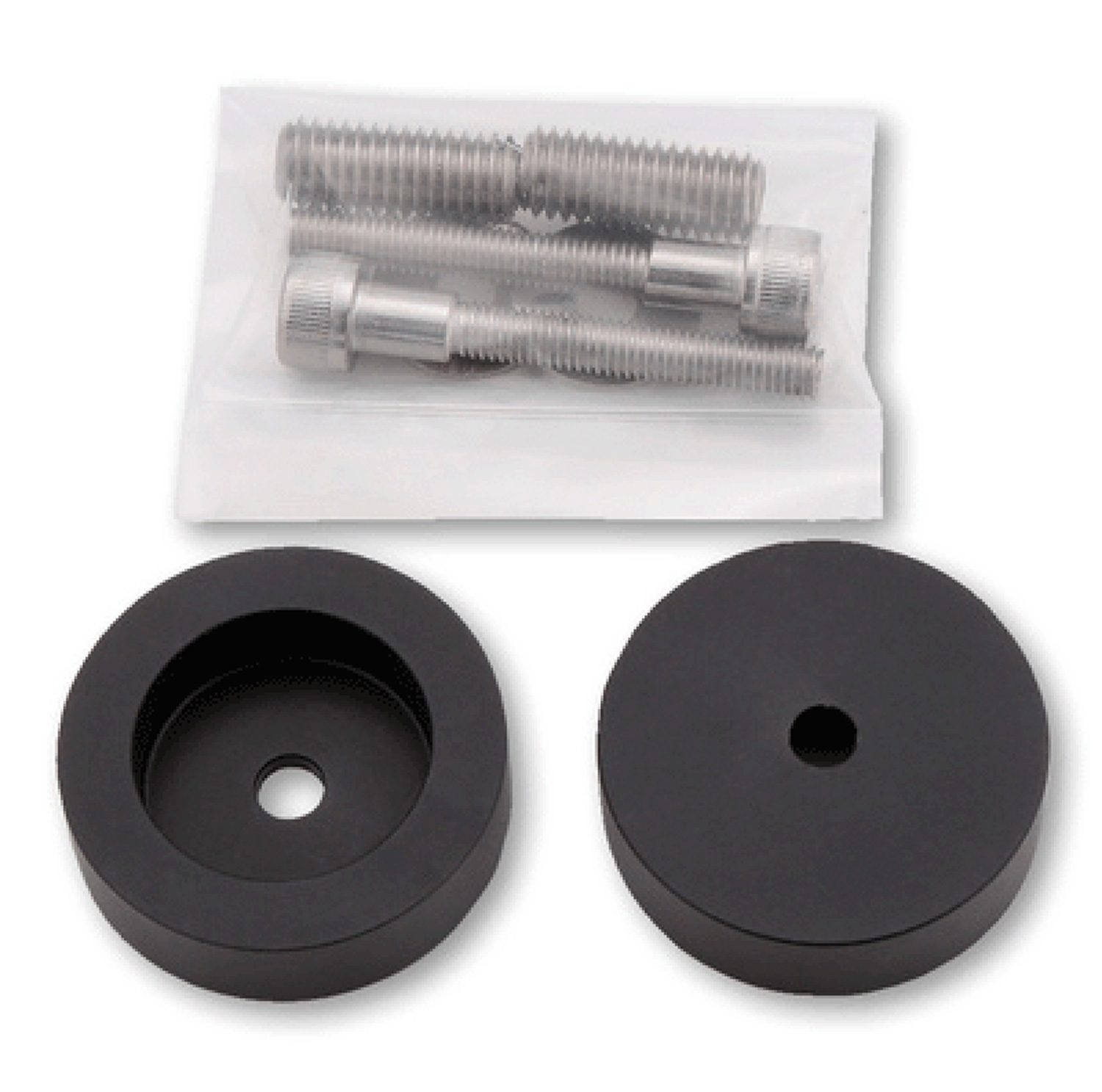

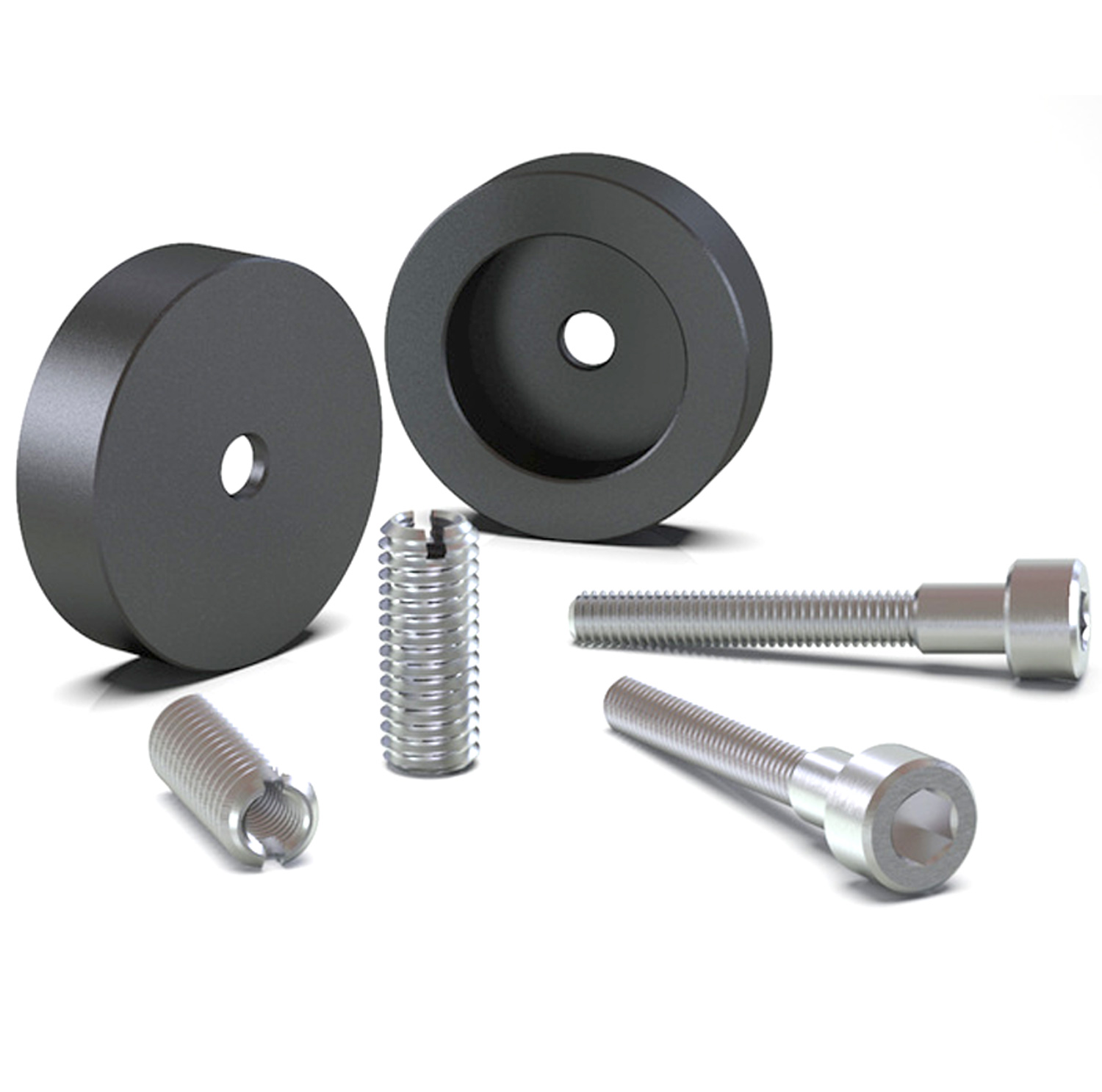

Scope of delivery:

2 x threaded sleeves

2 x washers

2 x M5 screws

2 x spacers

Price: £15.95

Quantity

US$20.36

Manufacturer highsider

Product ID 161-049

IAN/EAN: 4054783573455
