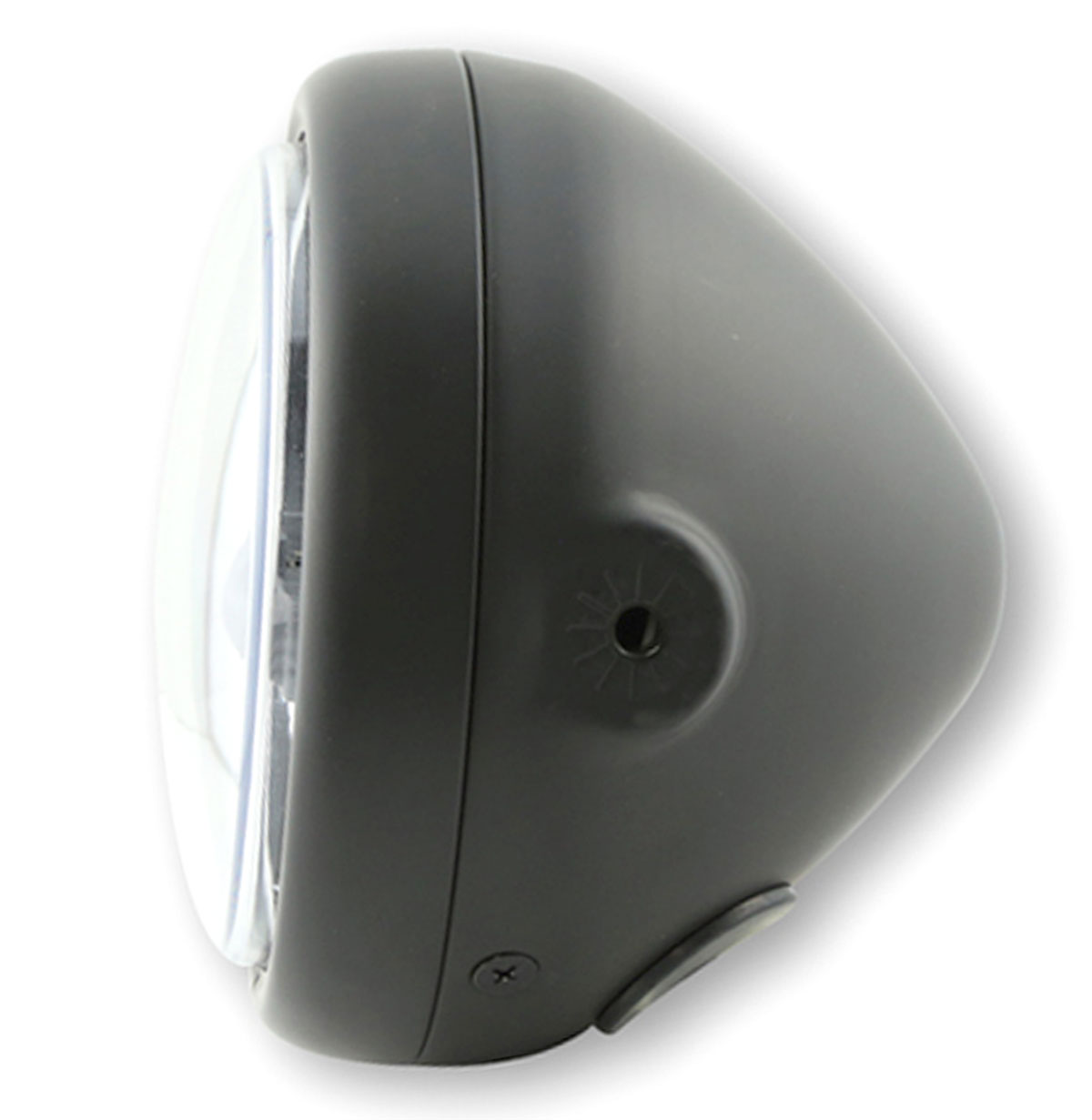

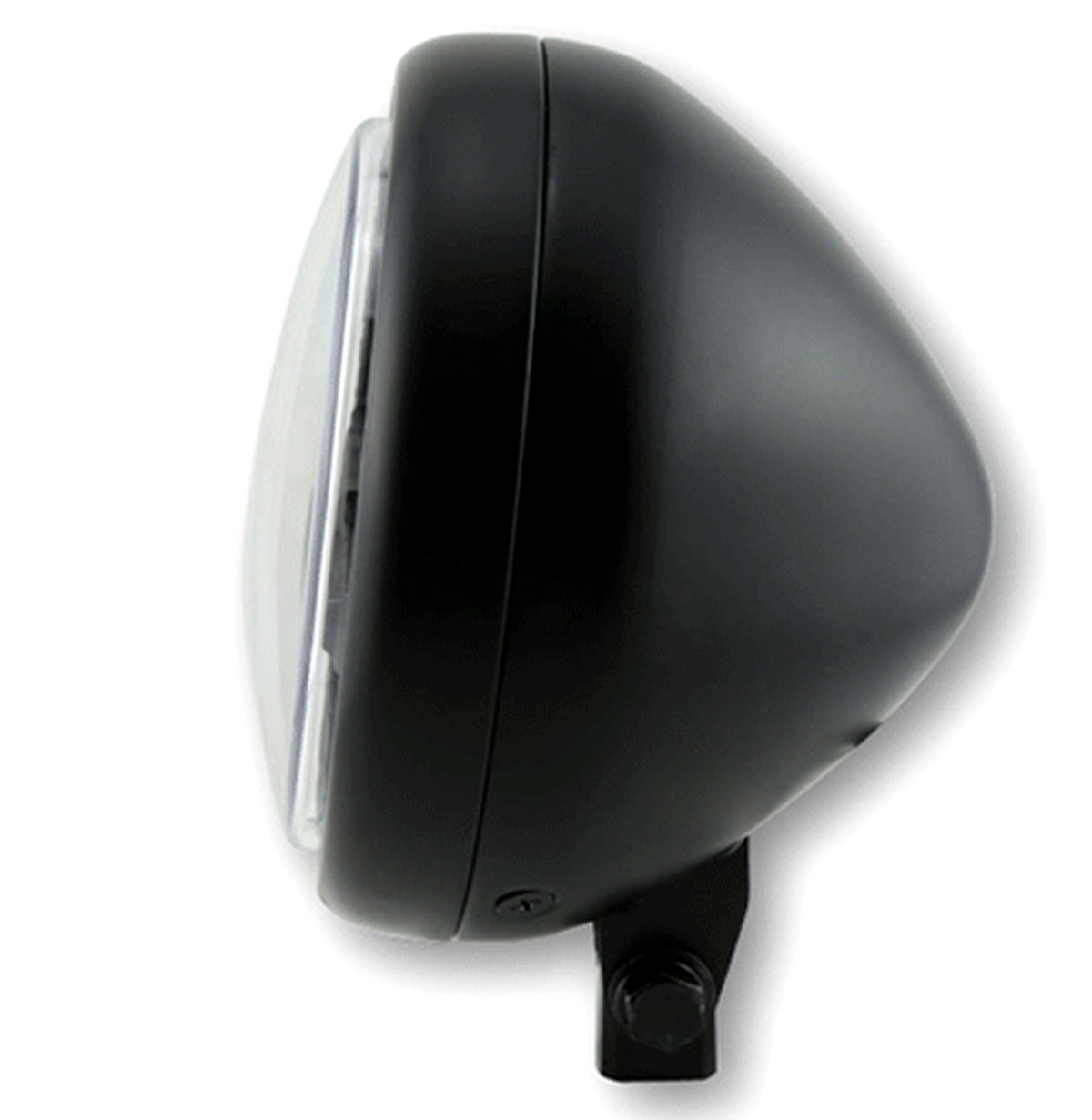

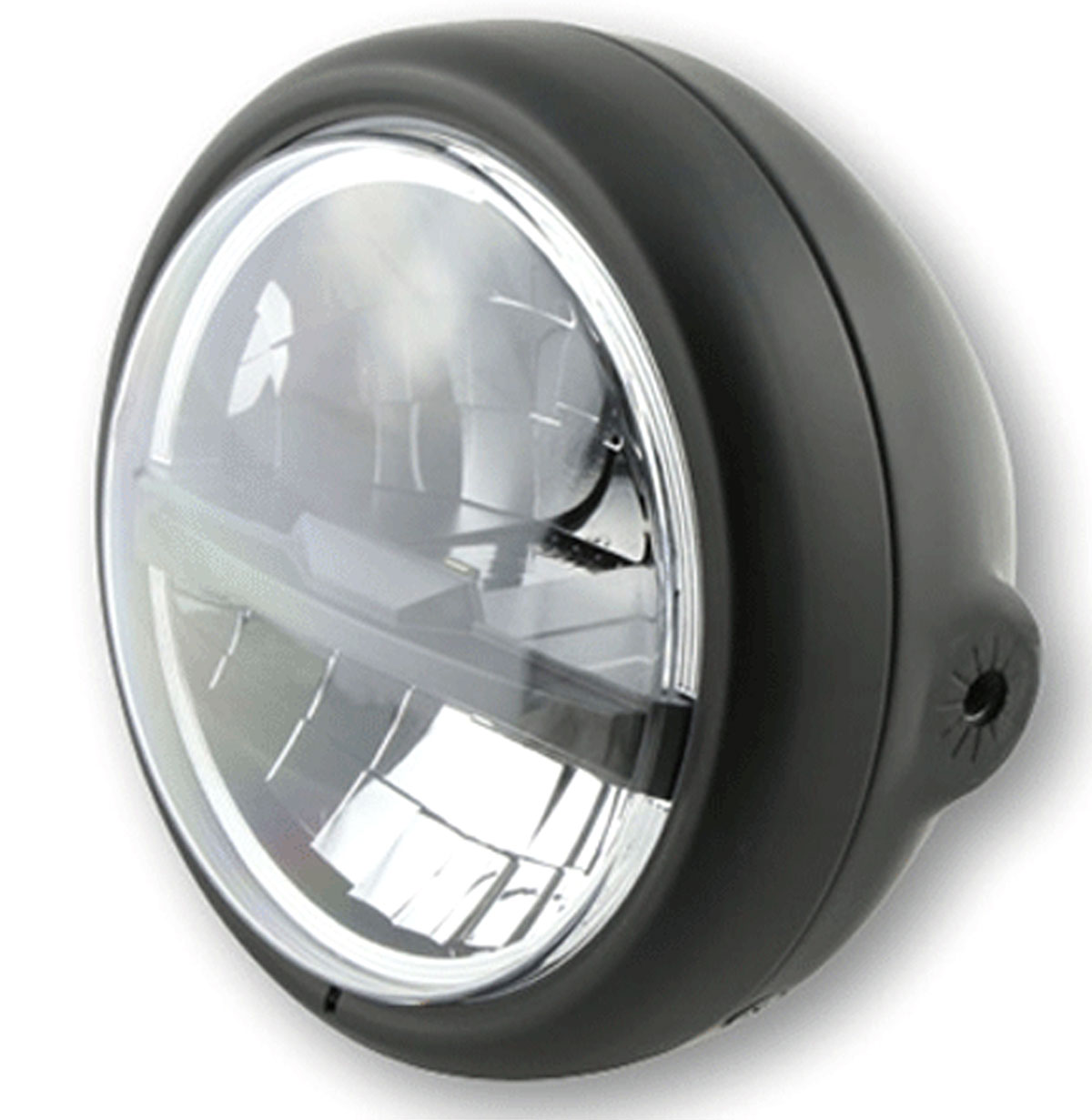

Highsider PECOS Type 5 LED Motorcycle Headlight

This Highsider 5 3/4 inch LED headlamp PECOS Type 5 is available black bottom mount or black side mount versions. With a symmetric dip beam pattern it is fully E-marked and road legal for all countries, eg UK and Europe, USA and Australia.

Puristic-shaped main headlight comes in a metal housing with high-, low beam and parking light. The low beam lights up at the upper half, and both halves lights up when switched high-beam on. This plain design is perfect matching to Classic Bikes, Roadsters and Custom Bikes.

Our highlights – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!

Product Feature:

Light source: LED
Glass: clear
Housing: matt black metal housing
Reflector: chrome-plated with black bar
Fixing point: bottom, adjustable or on the side of the housing

Dimensions:

Housing Ø: 165mm
Inner Ø of the ring: 136mm
Total depth: 135mm (incl. glass)
Weight: 1250g
Side Mount Thread: M8
Housing depth: approx. 75mm (Measured from the center of the side mounting holes to the rear)
Distance side mounting points: approx. 160mm
Bottom Mount Mounting height: 36mm (measured to the bottom edge of the lamp ring)
Mounting: screw 25x12mm (thread 24G 3/16 7/32)

Connections

3 pin connector:

Red = low beam (+)
White = high beam (+)
Black = ground (-)

Separate cable:

Brown = parking light (+)

Power consumption:

Low beam 25W at 12V (1121.2lm)
High beam 21W at 12V (1510.7lm)

Delivery contents: 1 piece

Options

Price: £199.95

Quantity

US$265.61

Manufacturer highsider

Product ID 223-215-7-8

IAN/EAN: 4054783255573
