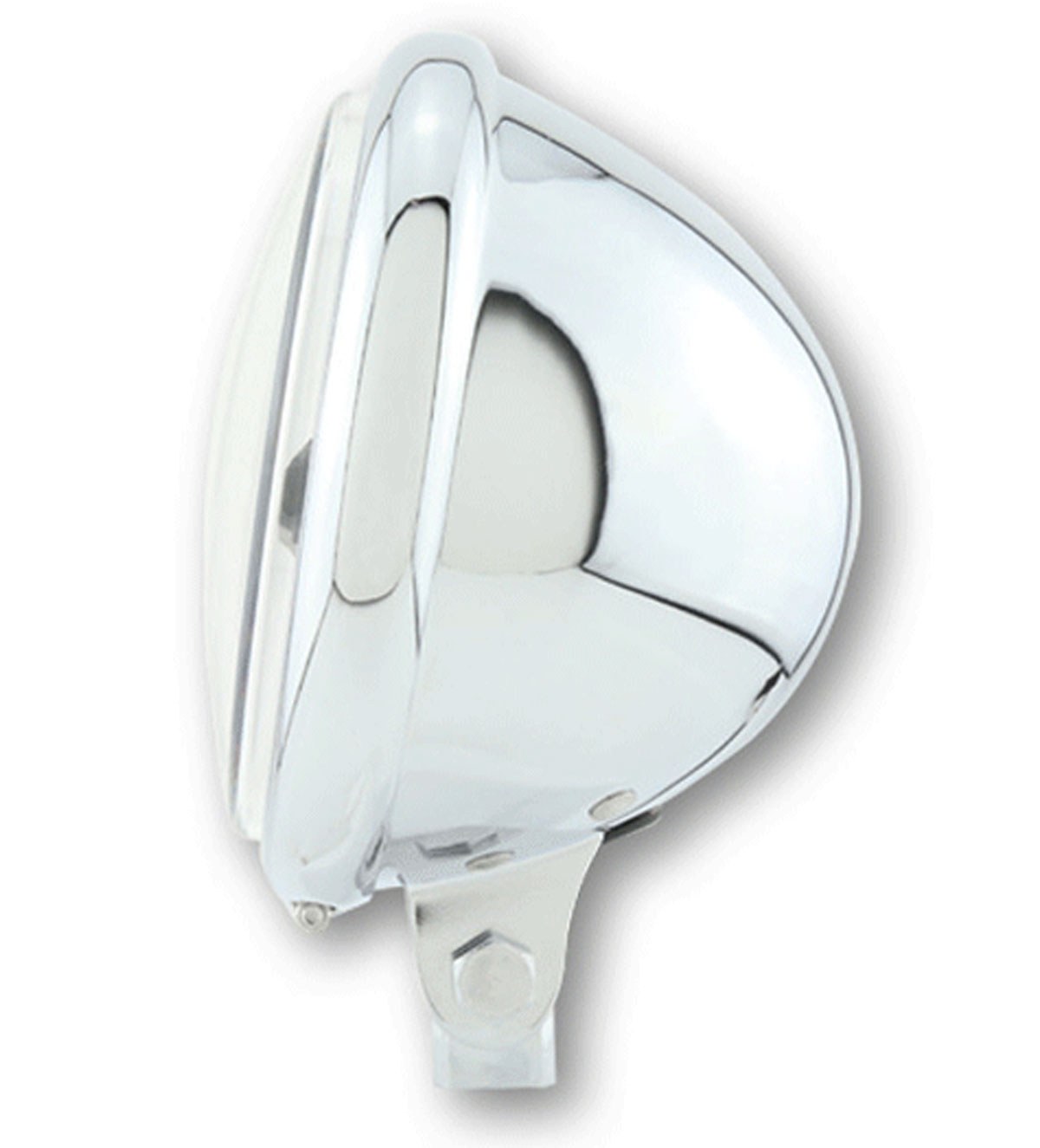

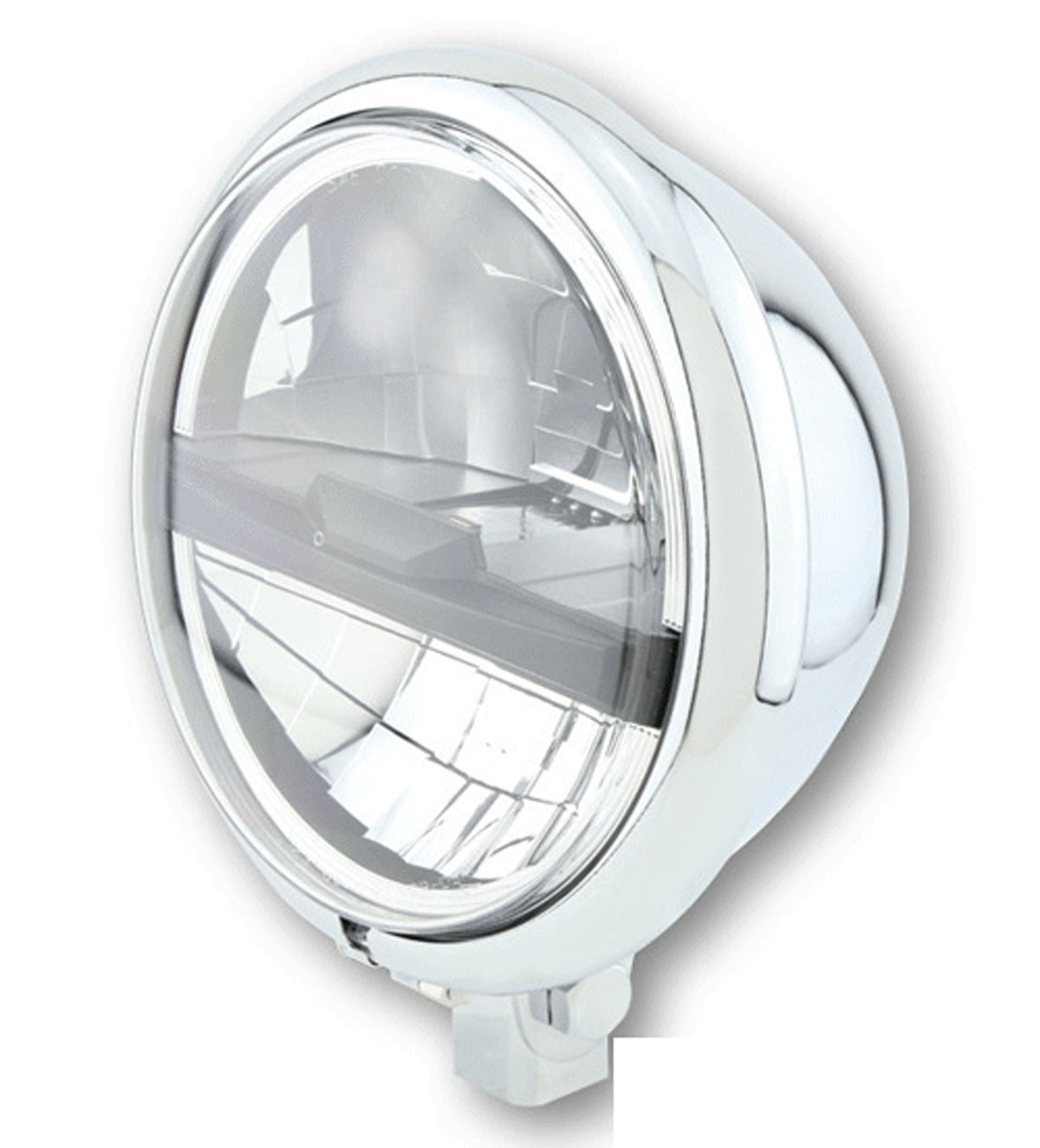

The Highsider 5 3/4 inch LED main headlamp Bates Style Type 5 comes in either a black or chrome finish, it is fully E-marked road legal and having a flat main beam is suitable for both RHD and LHD countries.

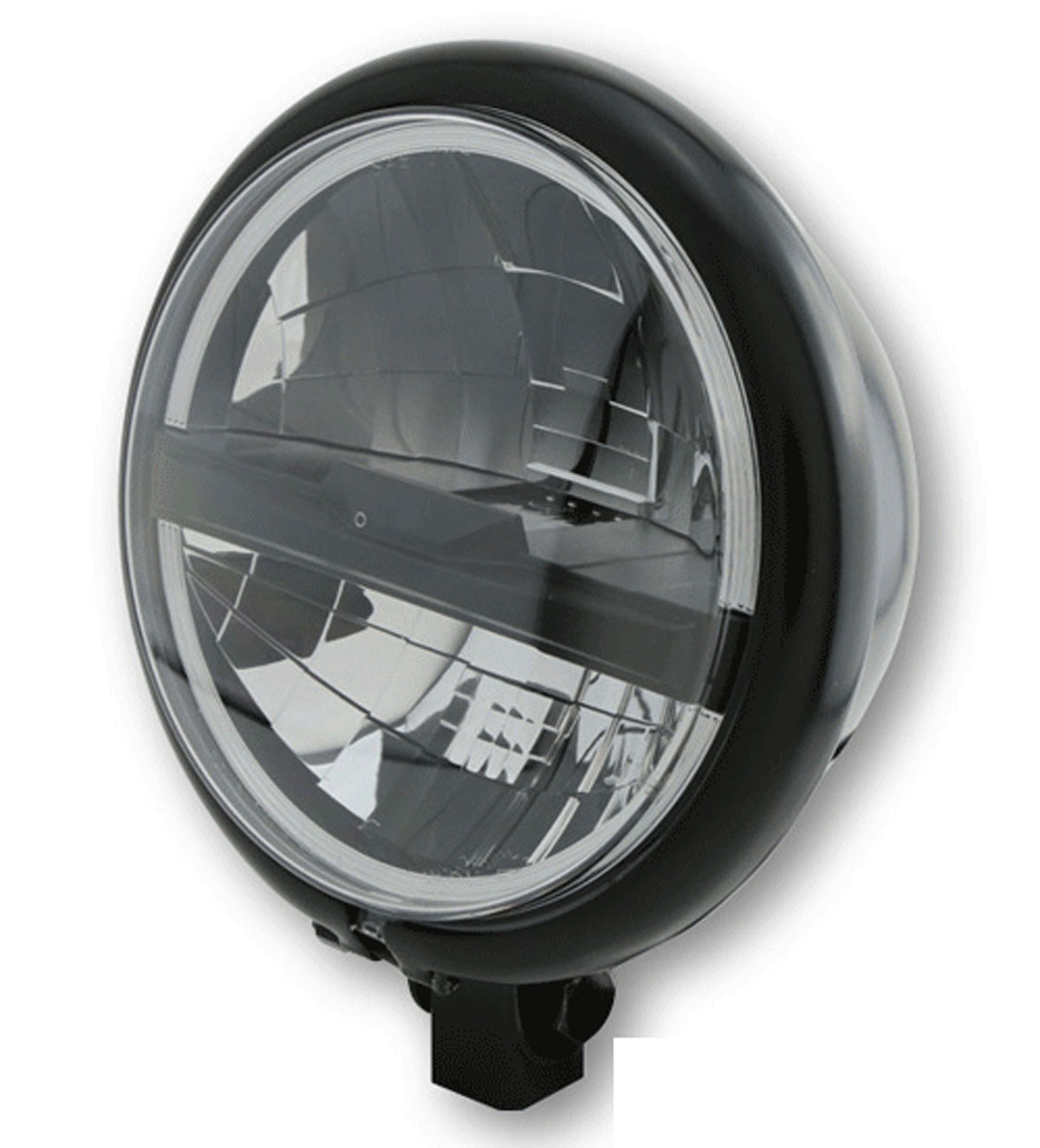

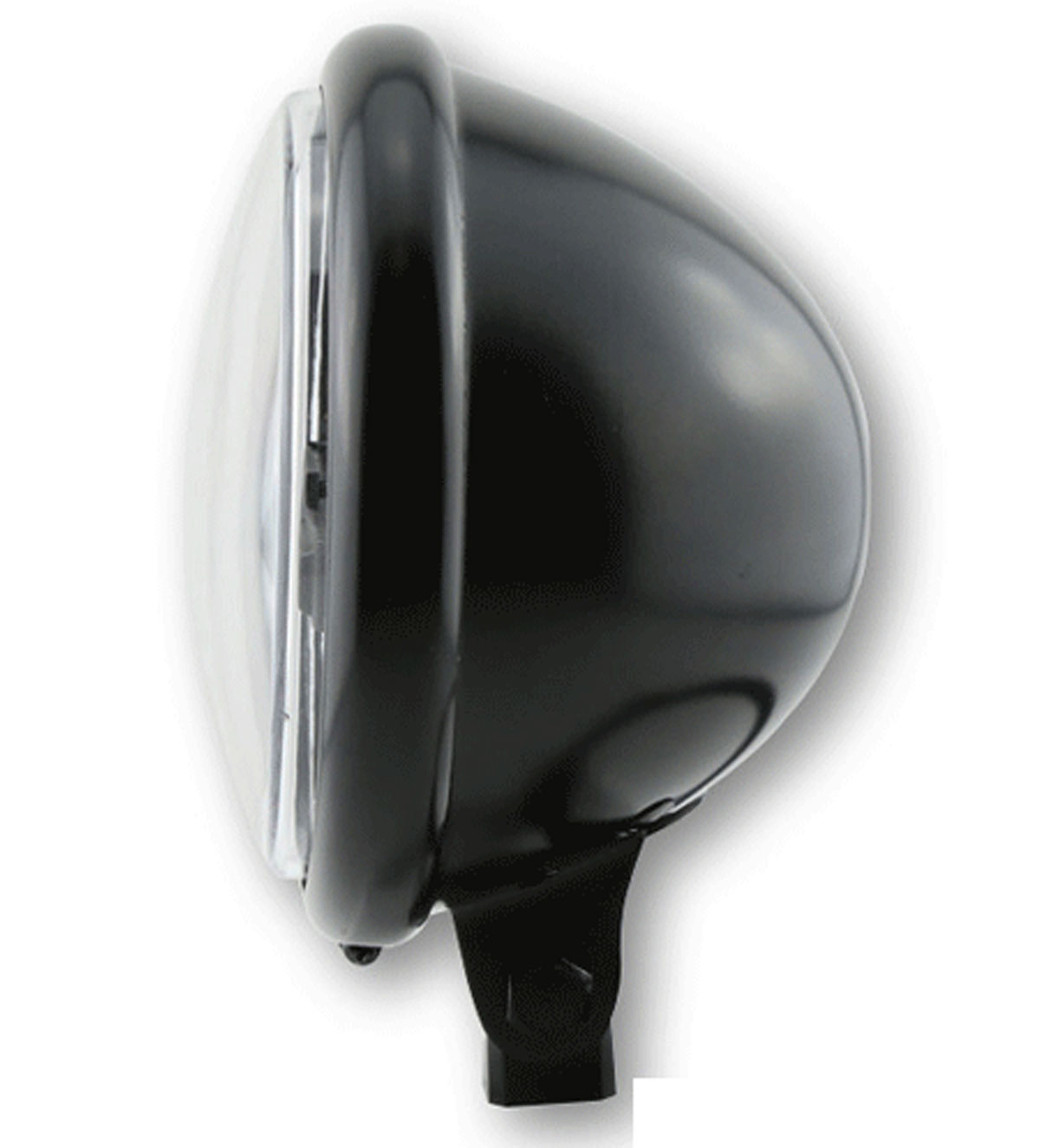

Stylish LED-headlamp with black metal housing in BATES STYLE design. Round, chromed insert with black cover, high-beam, low-beam and parking light feature. The low beam lights up at the upper half, and both halves lights up when switched high-beam on. The approved headlamp is also sturdy and easy to install.
Our highlights – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!
Dimensions:
- Housing diameter: 155 mm
- Headlamp insert diameter: 145 mm
- Depth without lens: 110 mm
Mounting point: bottom
Connections:
(3-pin plug)
red = low-beam (+)
white = high-beam (+)
black = ground (-)
brown = parking light (+)
black = ground (-)
Delivery contents: 1 piece
