Every centimetre counts to place the headlight as neatly as possible between the two standpipes in the fork.
"Reduced to the Max" was the premise for the development of the innovative Frame headlight mount. With the simplistic aluminium ring it is possible to mount LED headlight inserts free-standing on the motorcycle. The deliberate omission of a headlamp housing enables an unbeatably slimline installation and also provides better cooling of the LED unit.

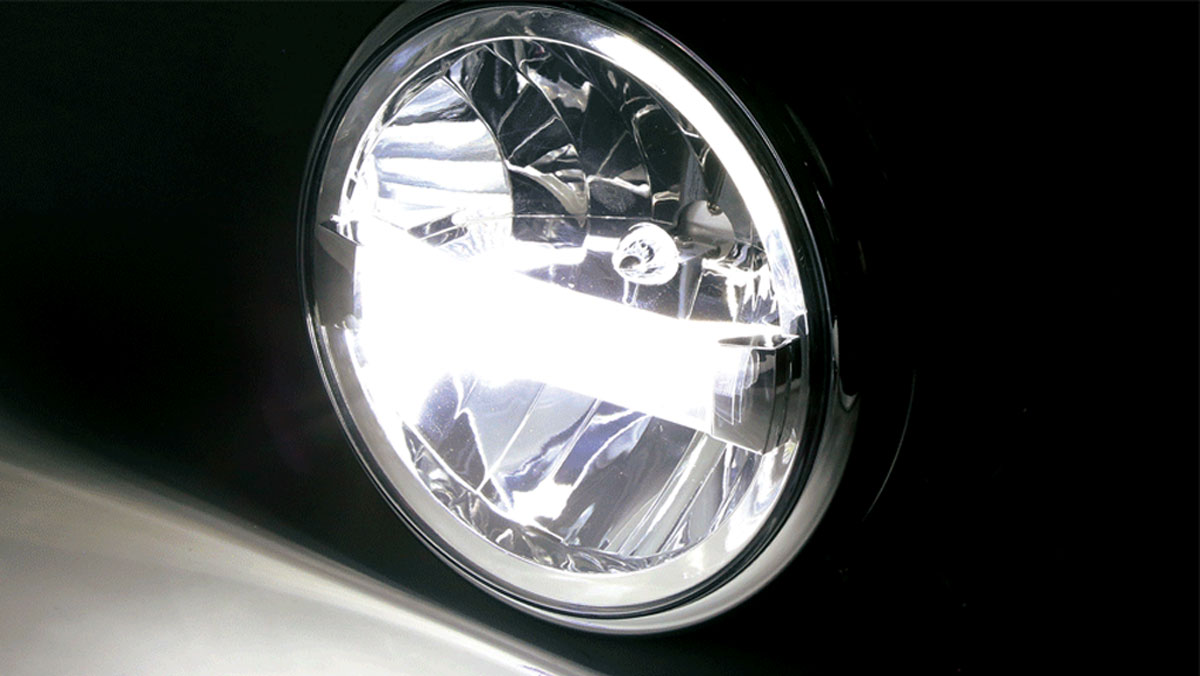

The Highsider Type 4 7" inch LED headlight provides both high and low beams with a (asymmetric - suitable for LHD European USA etc) prismatic chromed reflector, clear lens & built in Daytime Running light. The low beam illuminates the upper half of the headlight, and both halves lights up when high-beam is in use.
The Type 4 headlight is equipped with an asymmetric dip beam pattern it is fully E-marked and road legal for LHD Europe, USA etc, not suitable for UK, Australia and other drive on the left countries.
For variable mounting of the headlamp two different mounting systems are available;

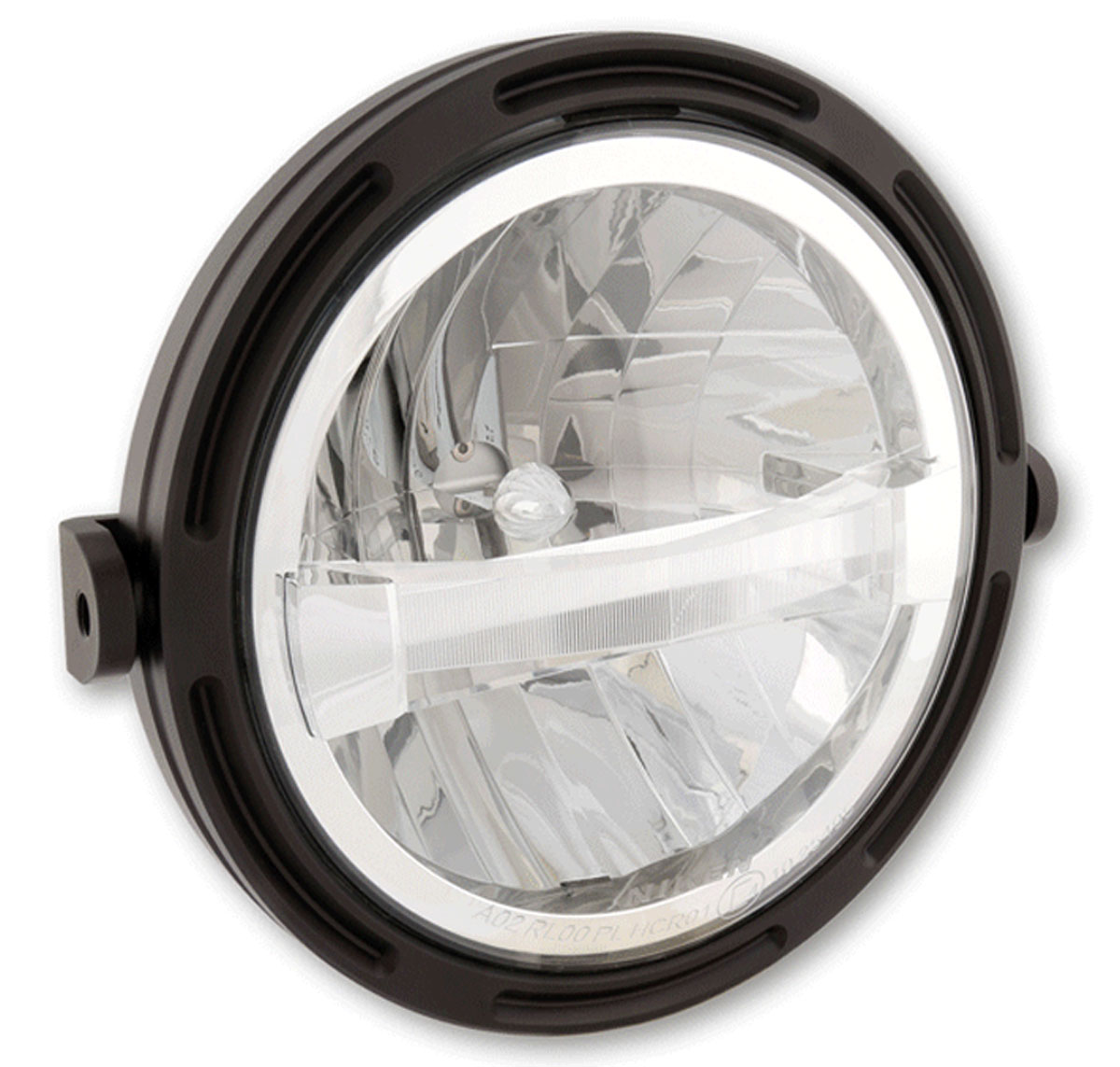

- Side Mount, the conventional screw connection at the side of the lamp holder. The side mount holders can be mounted in three positions, thus compensating for 32mm in installation depth and 46mm in width.
- Bottom Mount, attachment at the bottom for screw connection to the fork bridge
-

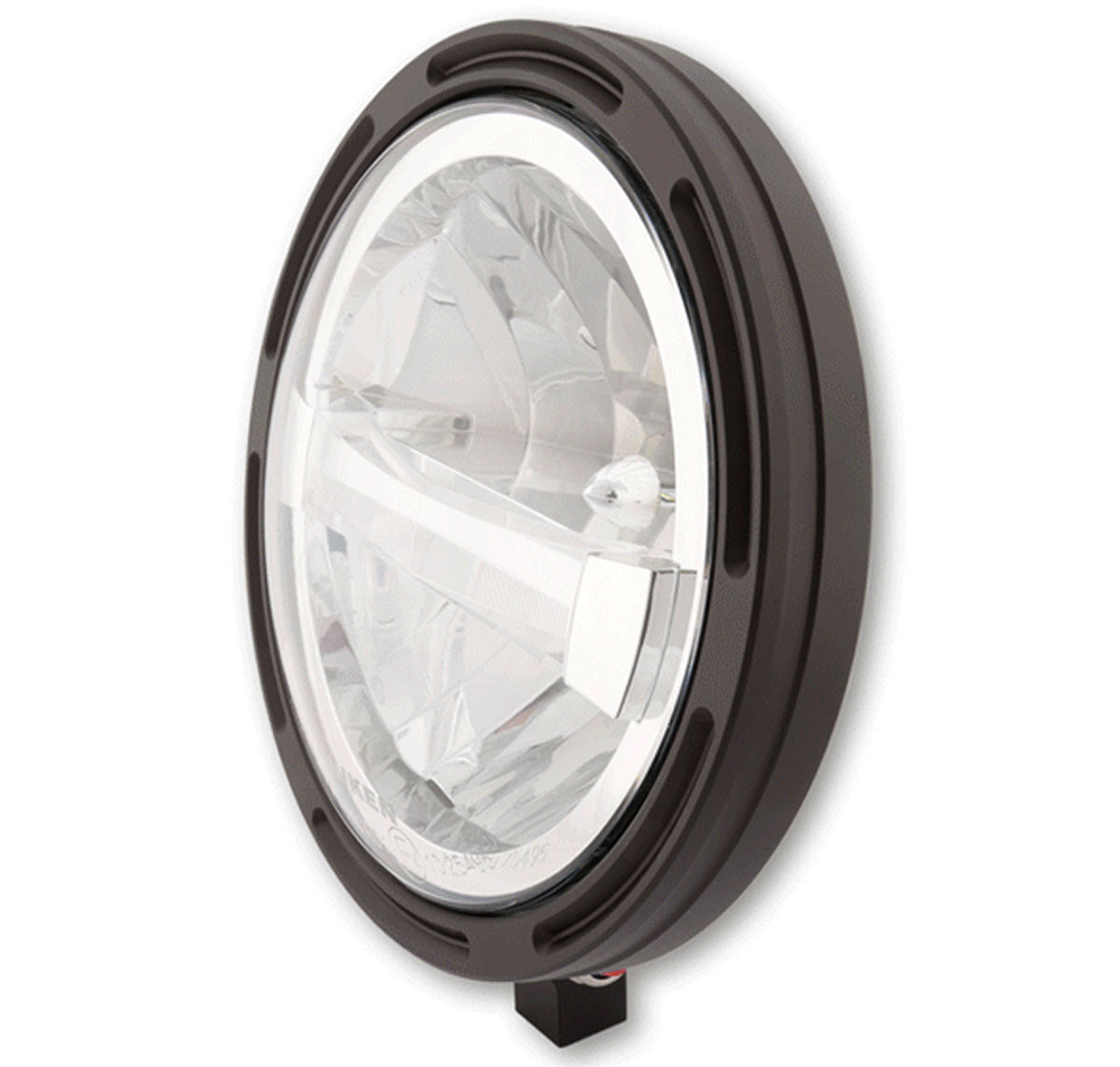

Round 7" inch headlight with CNC mounting ring and mounting kit
-
Mounting WITHOUT a headlight housing
-
Improves cooling
-
Multiple mounting possibilities
-
Flat mounting
-
Modern optics, stylishly innovative
-
Chrome-plated reflector with clear glass
-
Asymmetrical luminous flux
-
Daytime running light
-
E-Marked
Dimensions
-
Housing diameter: 200 mm
-
Lens Diameter: 168 mm
-
Rear Housing Diameter (behind Frame ring): 160 mm
-
Depth: 61mm (from rear of Frame ring)
-
Variant side mounting: M8

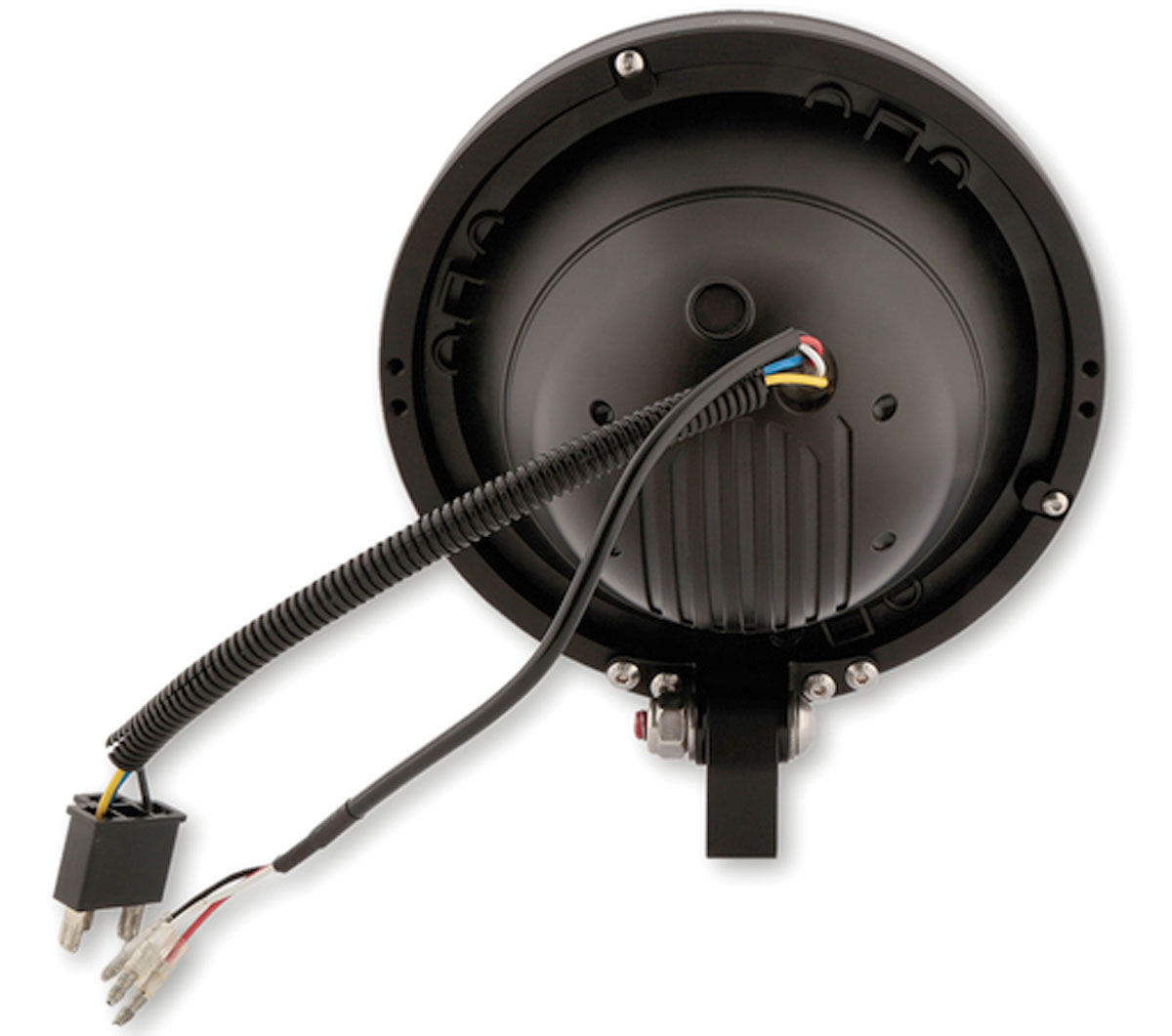

Connections:
Black cable = ground (-)
Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W
Yellow cable = high beam (+), power consumption at 12V: 1,3A, 13W
Black cable = ground (-)
TFL:
Black cable = ground (-)
Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W
White cable = position light (+), power consumption at 12V: 0.2A, 2.4W
The daytime running light can also be used on vehicles without a light switch. For this purpose, e. g. B. requires the following components: Switch: Art. No.
240-044
HIGHSIDER DRL CONTROL- BOX CB1: Art. No.
208-108 (switches between low beam and daytime running light)
