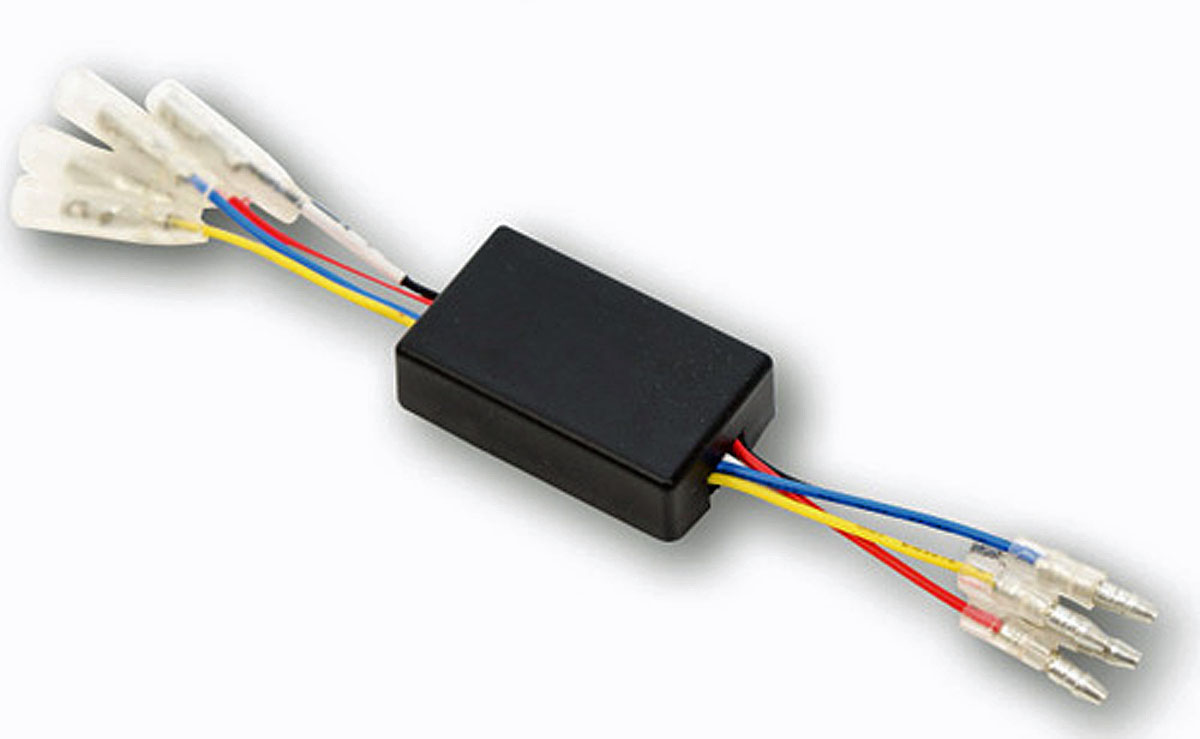

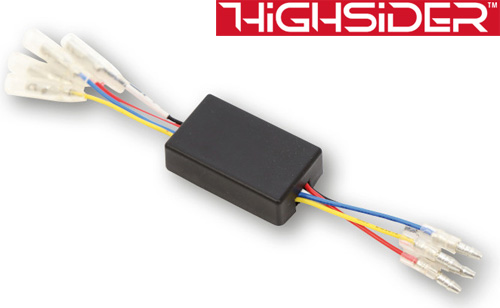

This Highsider Motorbike DRL Control Box CB1 is for motorcycles without an OEM light switch
Installing the DRL-box CB1 ensure the correct operation between daytime running light and headlight on vehicles without a light switch. According to the ECE regulation, the DRL must switch off (or dim down to front position light if available) as soon as the headlight will be switched on.
Note: The required ON/ OFF switch is not included, please order additional item no
240-044
On vehicles without a separate light switch, the DRL function will be disabled due to the fact, that the headlight will be switched on permanently. The box is suitable for LED and conventional headlights.
Customised for your bike – our extensive HIGHSIDER equipment is perfectly fitting for your motorcycle. With a maximum of quality and functionality you can design your bike according to your wishes.
Dimensions
Length: 48 mm
Width: 28 mm
Height: 14 mm

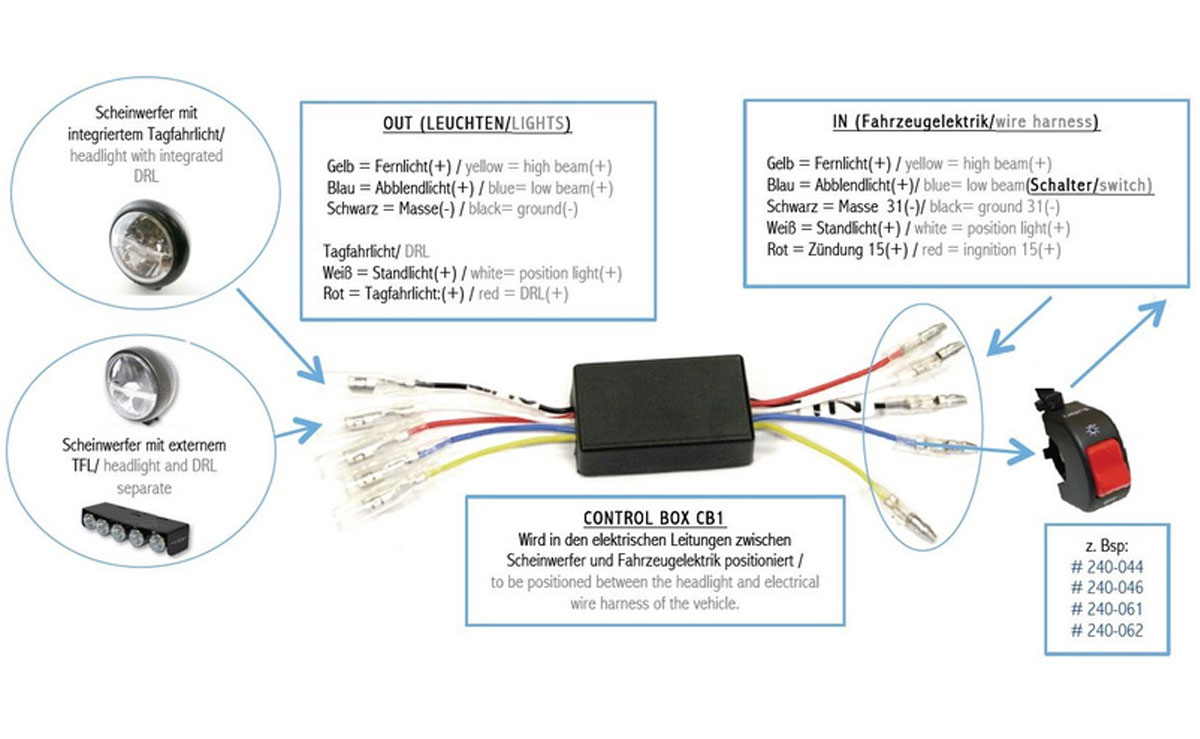

Cable assignment:
IN (motorcycle electric)
Yellow = full beam (+)
Blue = low beam (+)
White = park light (+) ON/OFF switch between
Red = ignition (+)
Black = ground (-)
OUT (headlight):
Yellow = full beam (+)
Blue = low beam (+)
Black = ground (-)
On the day drive light:
White = park light (+)
Red = day drive light (+)
Delivery contents: 1 piece
Note: The required ON/ OFF switch is not included, please order additional item no 240-044.
