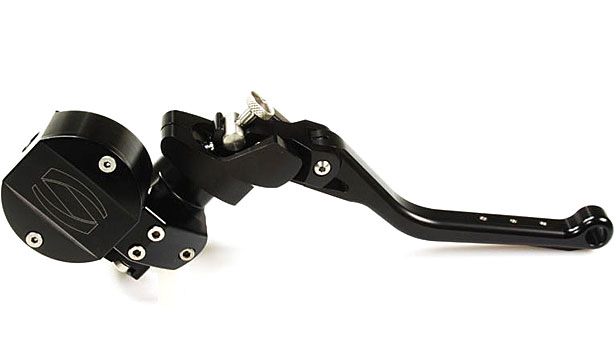

Spiegler Premium Radial Brake and Clutch Cylinder, Lever and Reservoir

These Spiegler Premium Radial Brake and Clutch Cylinder, Lever and Reservoir are fully CNC machined from solid aluminum. They provide a perfect feel when used for braking or as a clutch lever on 22mm or 25.4mm outside diameter handlebars.

The Spiegler radial cylinders offer clear advantages over stock brake or clutch master cylinders and other competitors:

• CNC machined and black anodized.
• Folding lever
• Reversible by pivoting lever for either clutch or brake.
• 360 ° swivel hose connection. Allows optimum mounting position for the external hydraulic reservoir.
• Adjustable gear ratio of the lever.
• Better definable pressure point in the brake system through the radial actuation of the piston.
• In the event of a fall, all parts available individually as replacement parts.
• 455g total dry weight
• 10-14 day delivery time

Available in 3 different piston diameters:

• Ø18mm (Ø16.3 mm corresponds active diameter)
• Ø20mm (Ø18.5 mm corresponds active diameter)
• Ø22mm (Ø20.7 mm corresponds active diameter)
