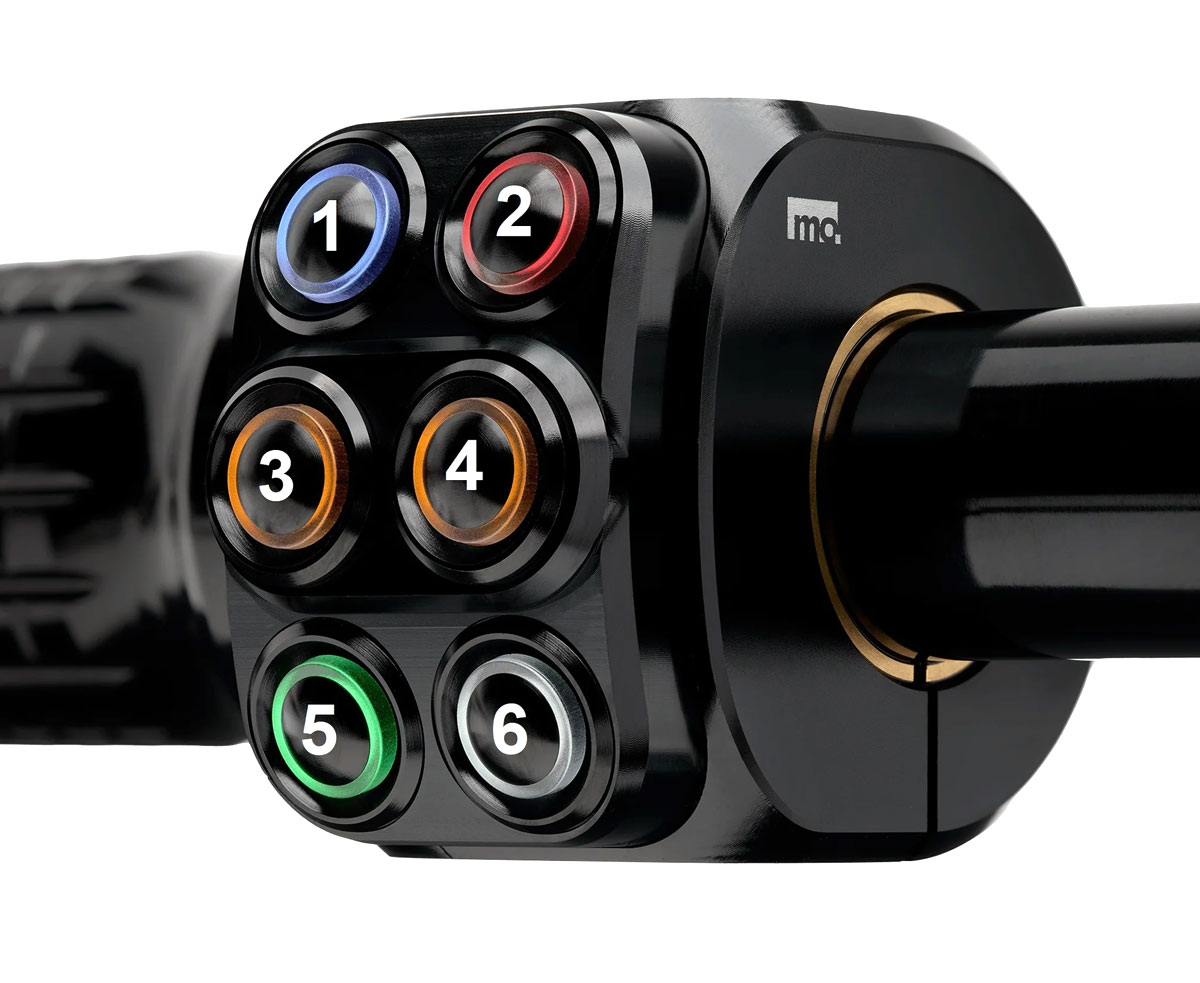

Motogadget mo.Switch Pro with 6 Illuminated Push Buttons

New from Motogadget the mo.Switch Pro is a high-quality handlebar switch with 6 illuminated buttons. A complete solution for anyone who loves a minimalist look. Suitable for 22.2mm or 25.4mm (1") handlebar diameter. Prefabricated with a 1.8m connection cable for quick and easy installation.

Special Order can take 7-10 days to despatch


  • The mo.switch pro is Motogadgets flagship switch product. A universal, high-quality switch fitting suitable for handlebar diameters of 22.2 mm or 25.4 mm (1 Inch).
  • The left-hand pushbutton panel is designed as a complete solution and includes all standard pushbuttons required to control the vehicle.
  • CNC machined from billet aluminum, the housing is black anodized. A hidden M4 stainless steel mounting screw clamps the unit securely to the handlebar.
  • The two-part design in clamp housing and stylish inlay makes mounting child's play. The supplied handlebar adapter acts here as a drilling template.
  • The mo.switch pro is "ready to connect". Everything has already been completely wired, as we have already carried out the time-consuming connection of the individual buttons with the respective LED lighting.
  • The pushbutton unit is waterproof moulded on the back and equipped with a highly flexible, black, 8-core cable.
  • The 1.8m cable is specially manufactured to our specifications, has a low cross-section and is perfect for routing through a handlebar.

Technical Data
  • Pushbutton unit pre-wired and waterproof encapsulated
  • High quality connection cable with 1.8m length
  • Jet water resistant according to IP65
  • Ring-shaped LED illumination of the individual buttons
  • Button functions: Horn | High beam | Turn signal left & right | Starter | Instrument
  • Clean look without visible screws
  • Easy mounting without wiring of individual pushbuttons
  • suitable for handlebar diameter 22.2mm (7/8") or 25.4mm (1")
  • HJigh quality CNC milled from aircraft aluminum and UV resistant anodized
  • Housing color black, button black, button LED colors red, green, blue, white, yellow
  • Maximum pushbutton switching current: 1A, all pushbuttons switch to ground
  • Additional switching electronics mo.unit required
  • Height 48mm, width 36mm, depth 58mm


The pushbuttons used are of high quality, vibration resistant and jet water protected according to IP65. The button size and the ergonomic pressure point give an optimal switching feeling when operating with gloves.



Price: £189.95
Quantity
US$240.38
Manufacturer MotoGadget
Product ID 4004040
