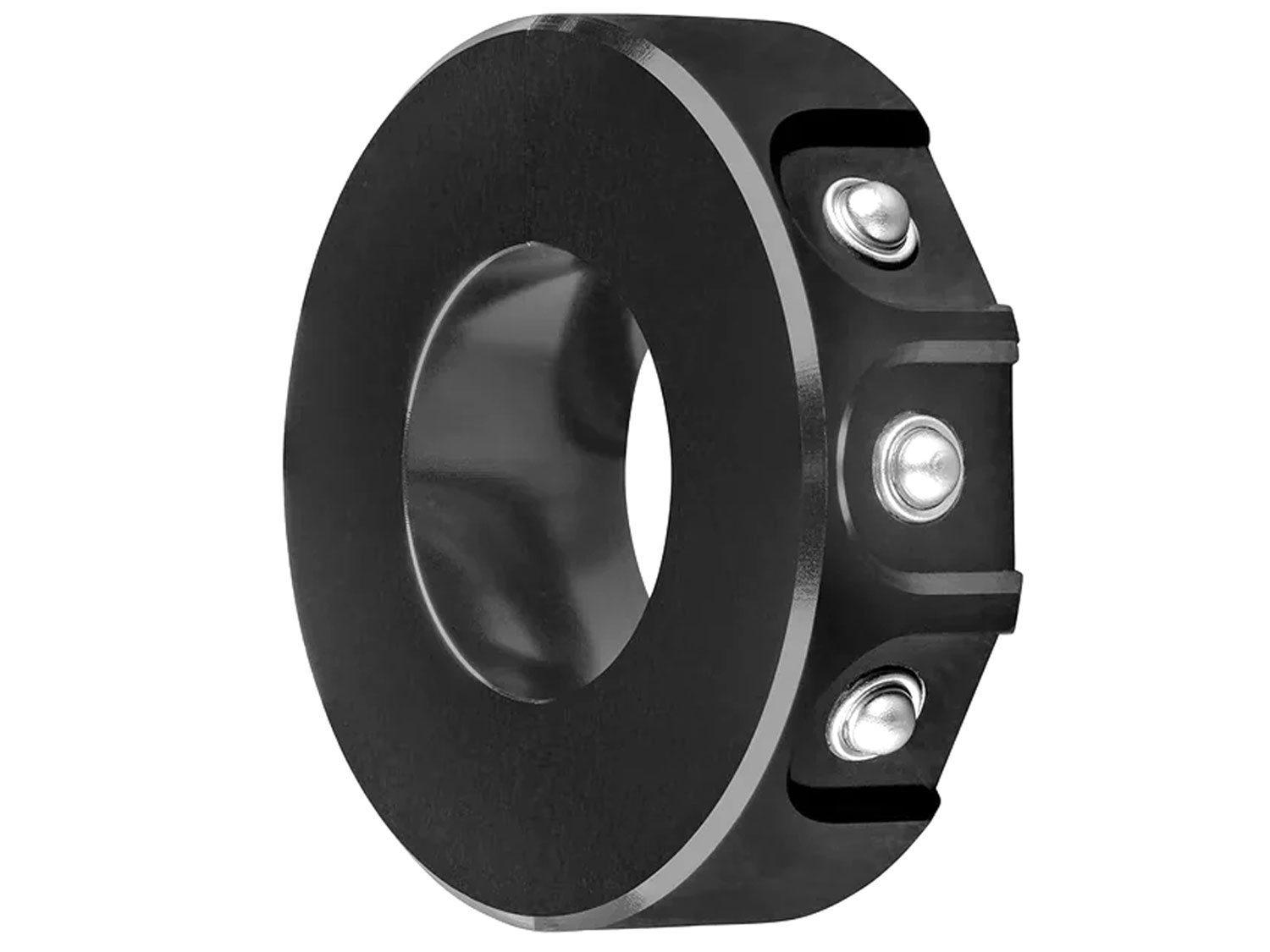

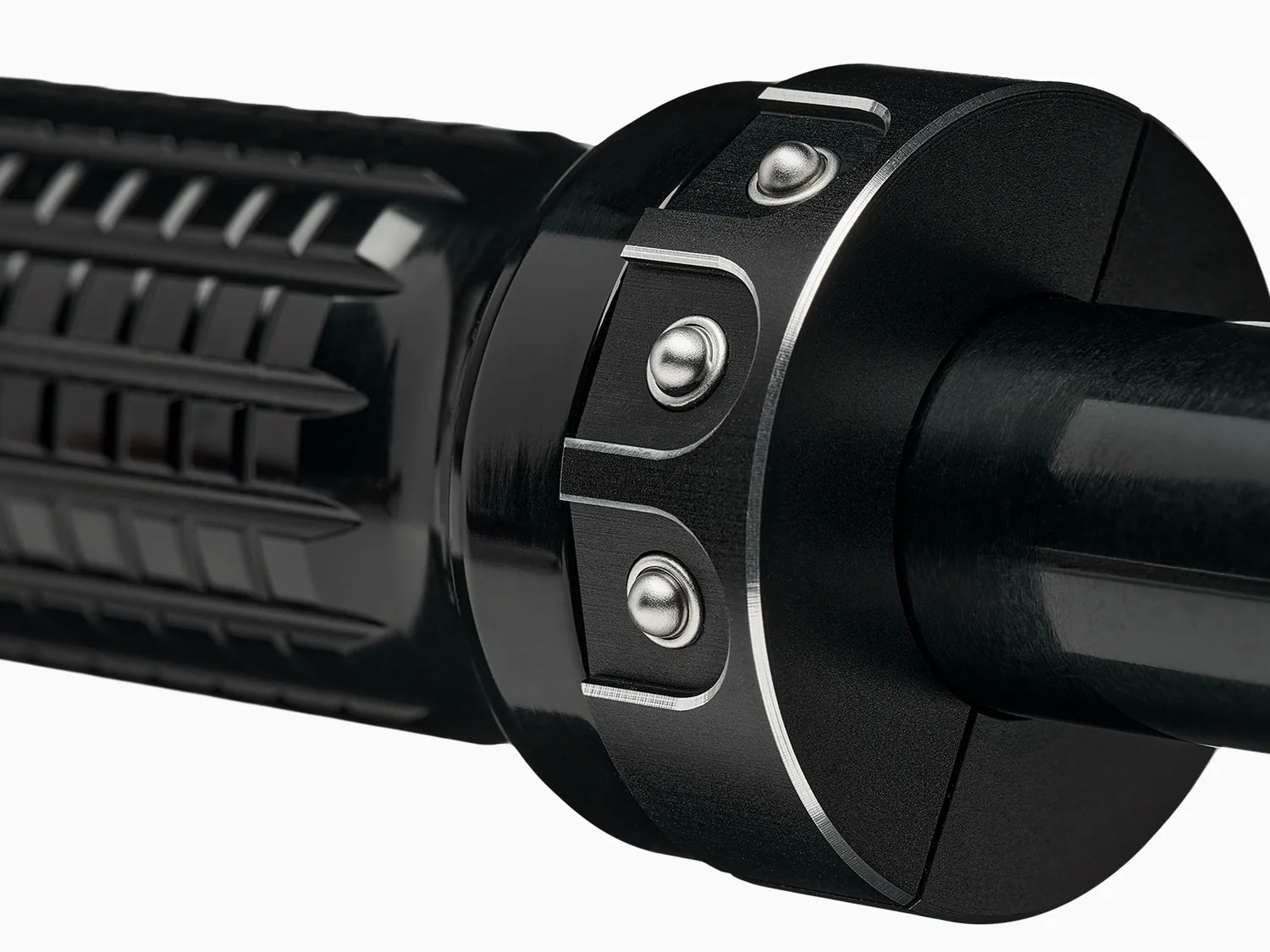

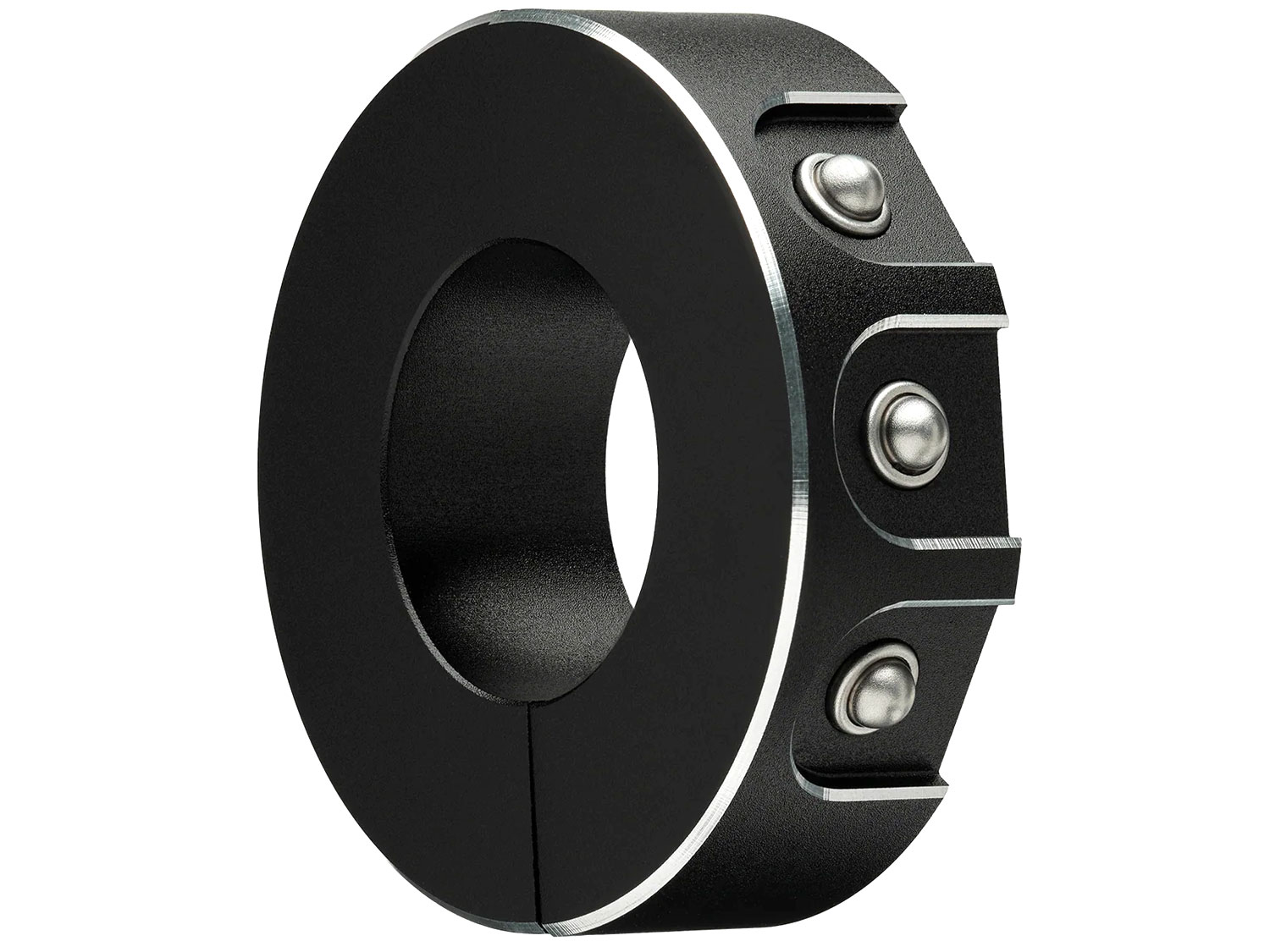

Motogadget mo.Switch Mini with 3 Push Buttons

The Motogadget M-Switch Mini with 3 Push Buttons is available in a black or polished finish and in 1" or 22mm handlebars sizes. The switches do not latch but make momentary connection as per their push button description. Designed to be used with the m-unit and m-button wiring system products or similar as they have a 0.05A maximum current so need a secondary switching device of some sorts.

Instruction Manual

These finely CNC machined hand controls in combination with an electronic push-button control unit or relay (NOT INCLUDED IN KIT) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.

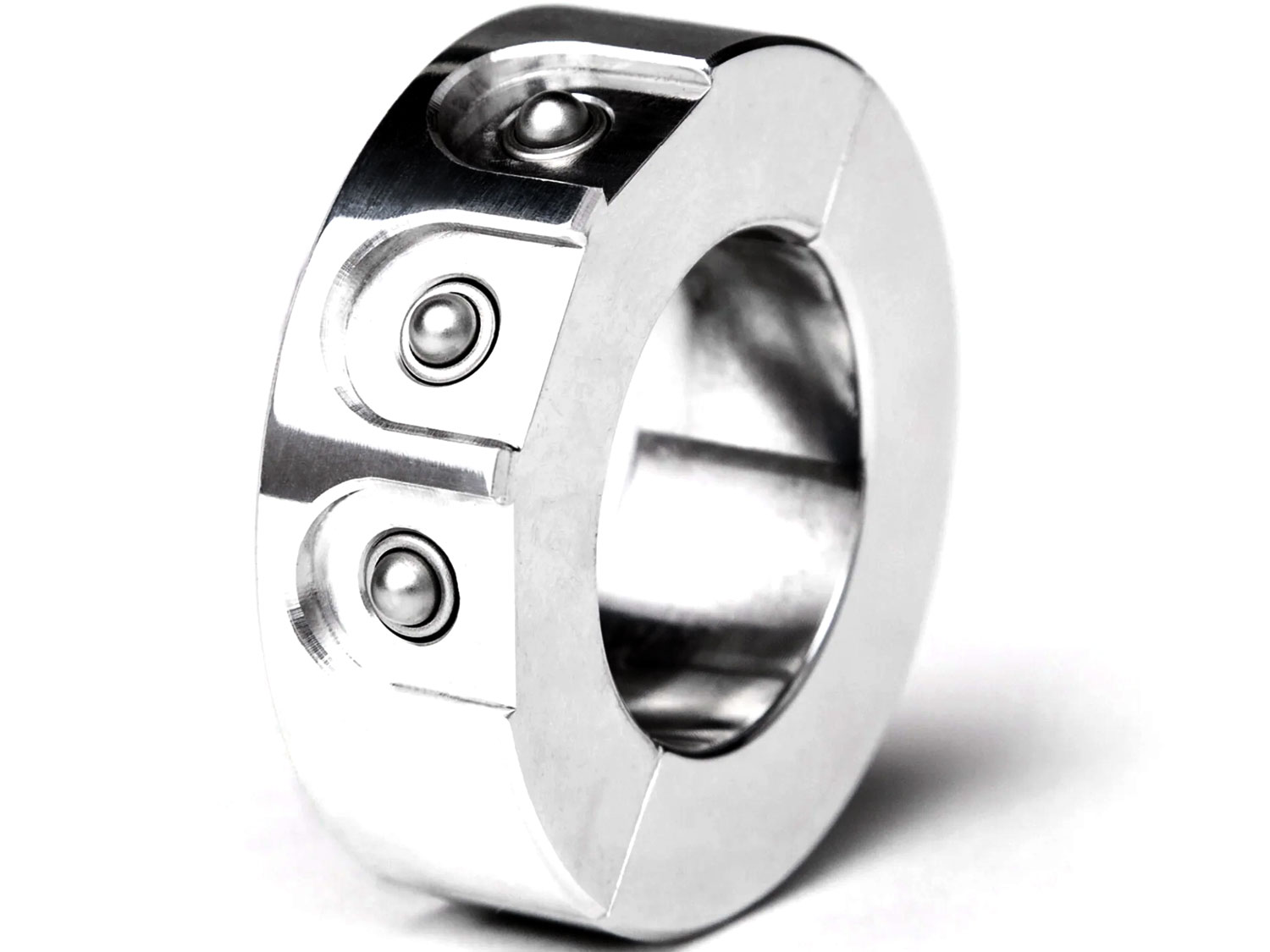

The casing is made from CNC machined billet aluminium and available in mirror polished or black finished surface respectively.

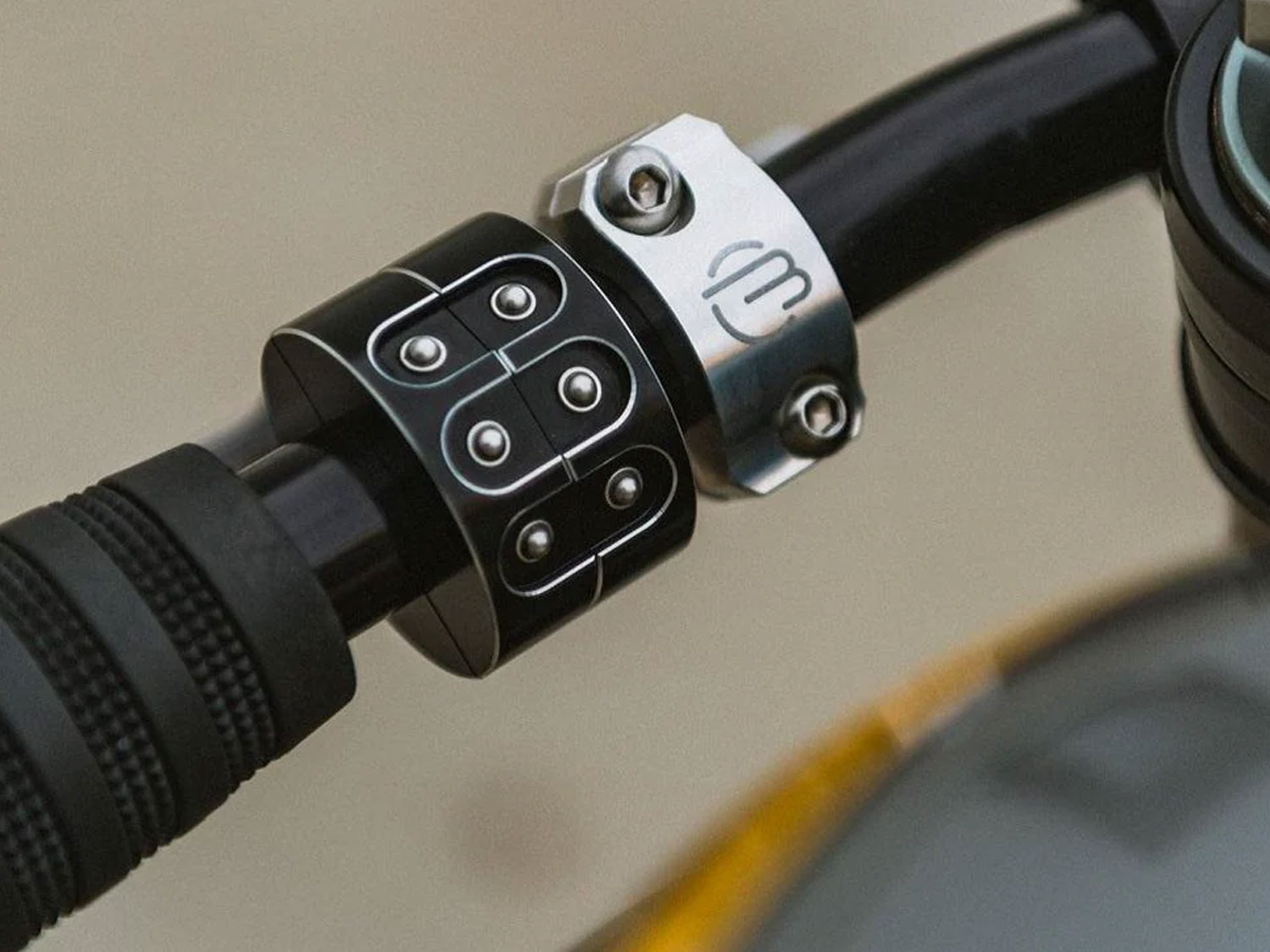

Two flush built-in M5 stainless steel mounting screws ensure secure and stable clamping of the push-button control to all handle bars.

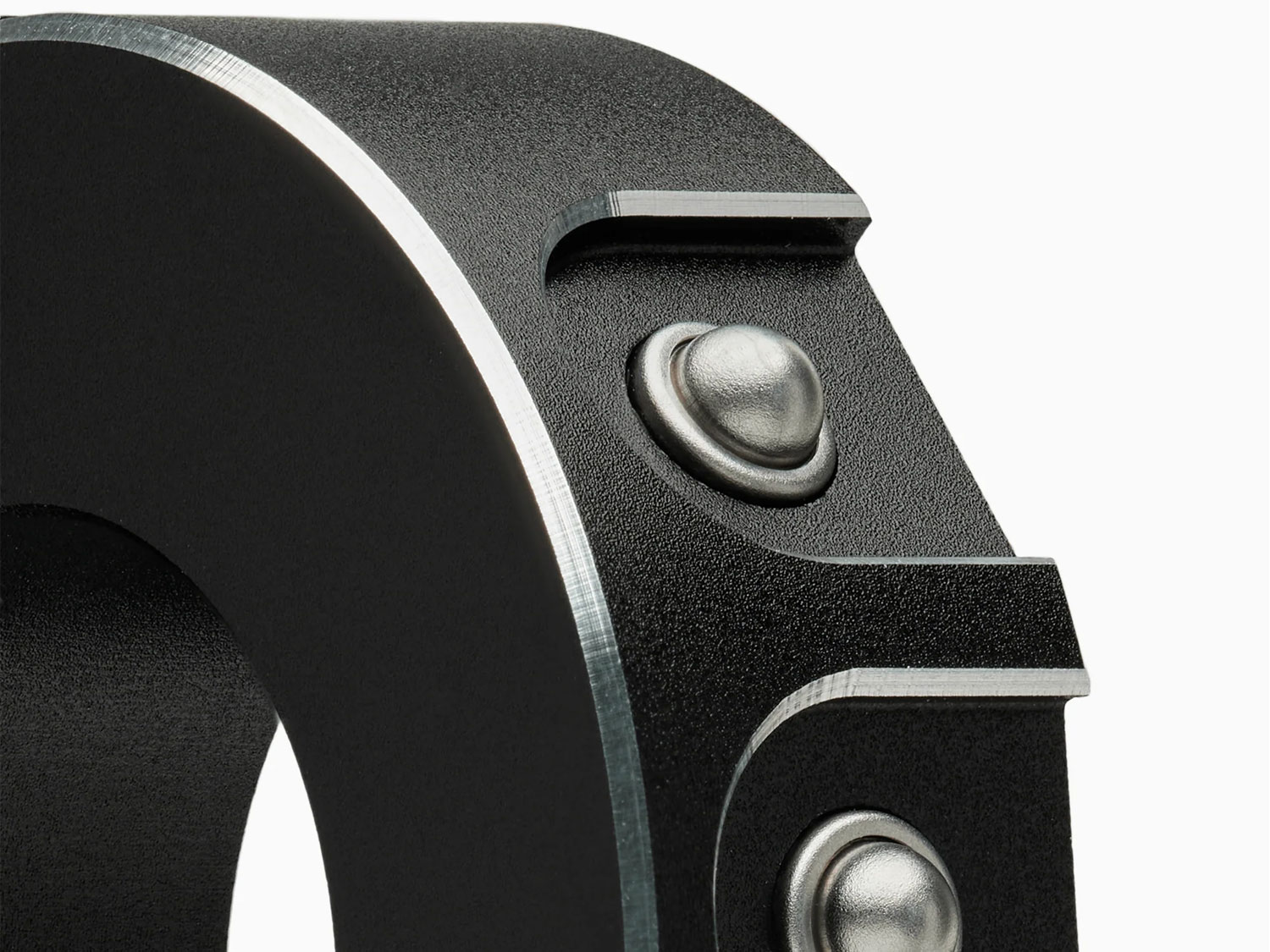

The push-buttons are of high quality, very robust design and vibration- and spraywater-proof (IP65).

The m-Switch is of course compatible to all common push-button controls, e.g. the m-Unit.

Dimensions

Inner diameter: 22 mm or 1 in.
Outer diameter: 45 mm
Width: 14 mm
Length of pre attached cable: 2 metres

Options Housing/Buttons

Price: £109.95

Quantity

US$139.35

Manufacturer motogadget

Product ID 361-917

IAN/EAN: 4054783184804
