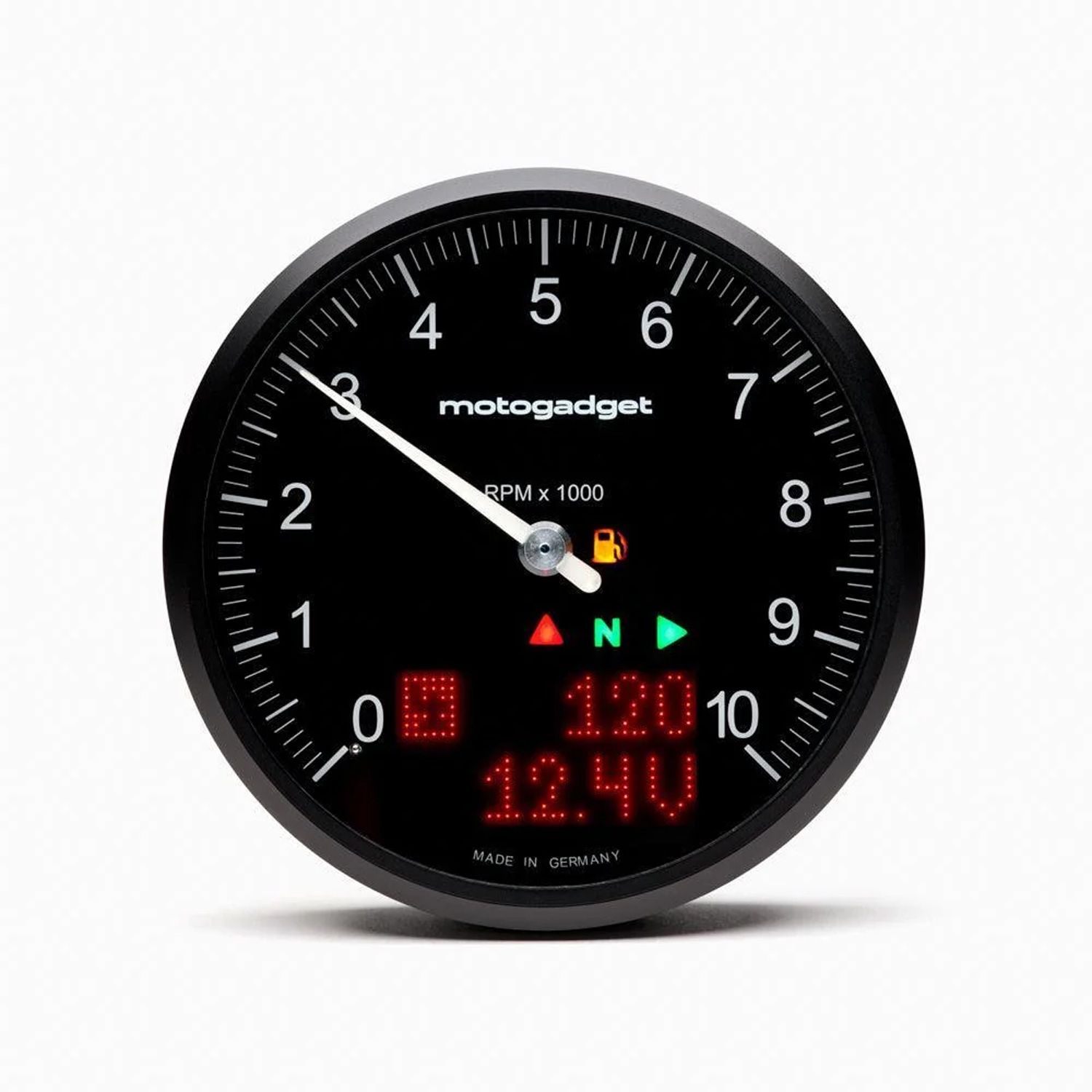

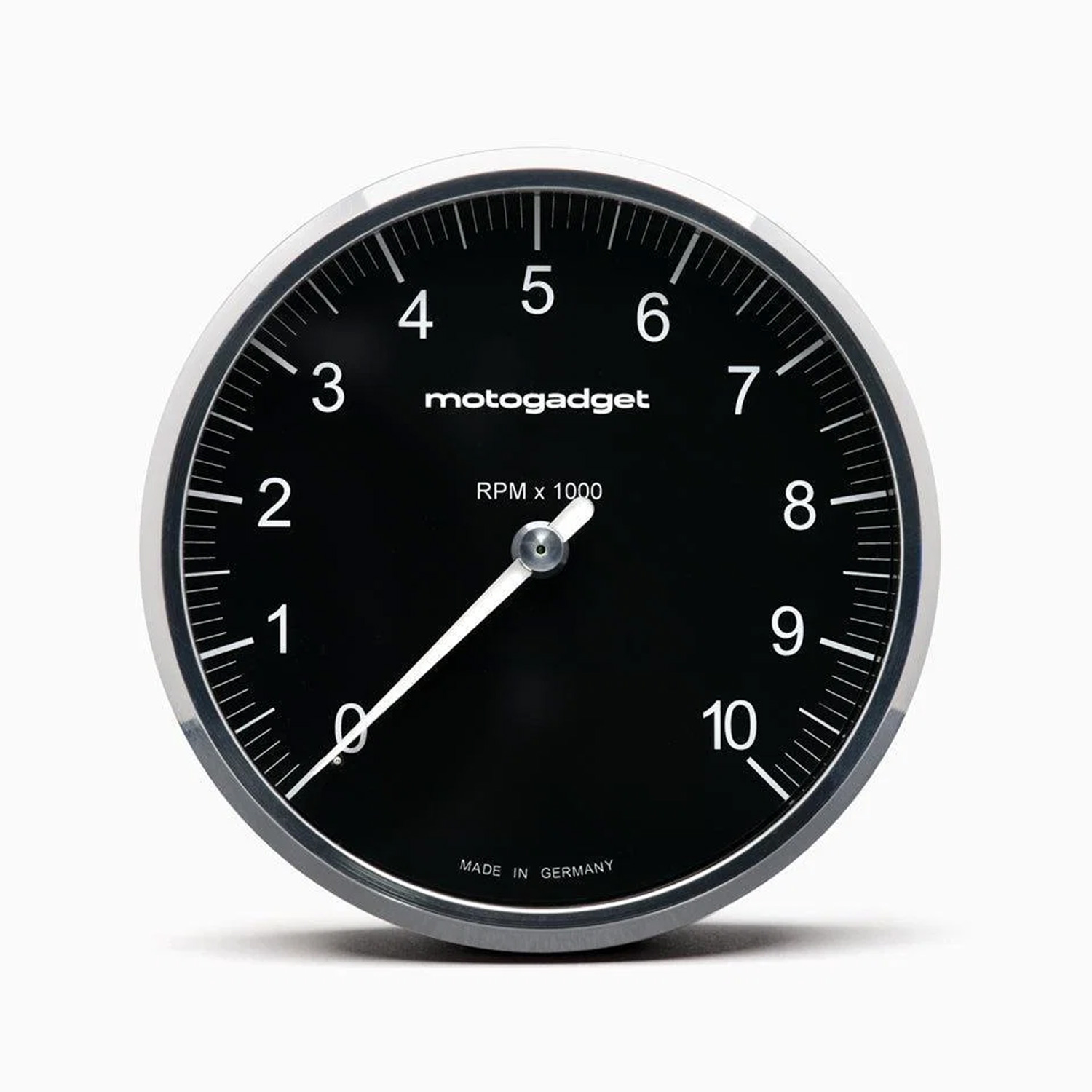

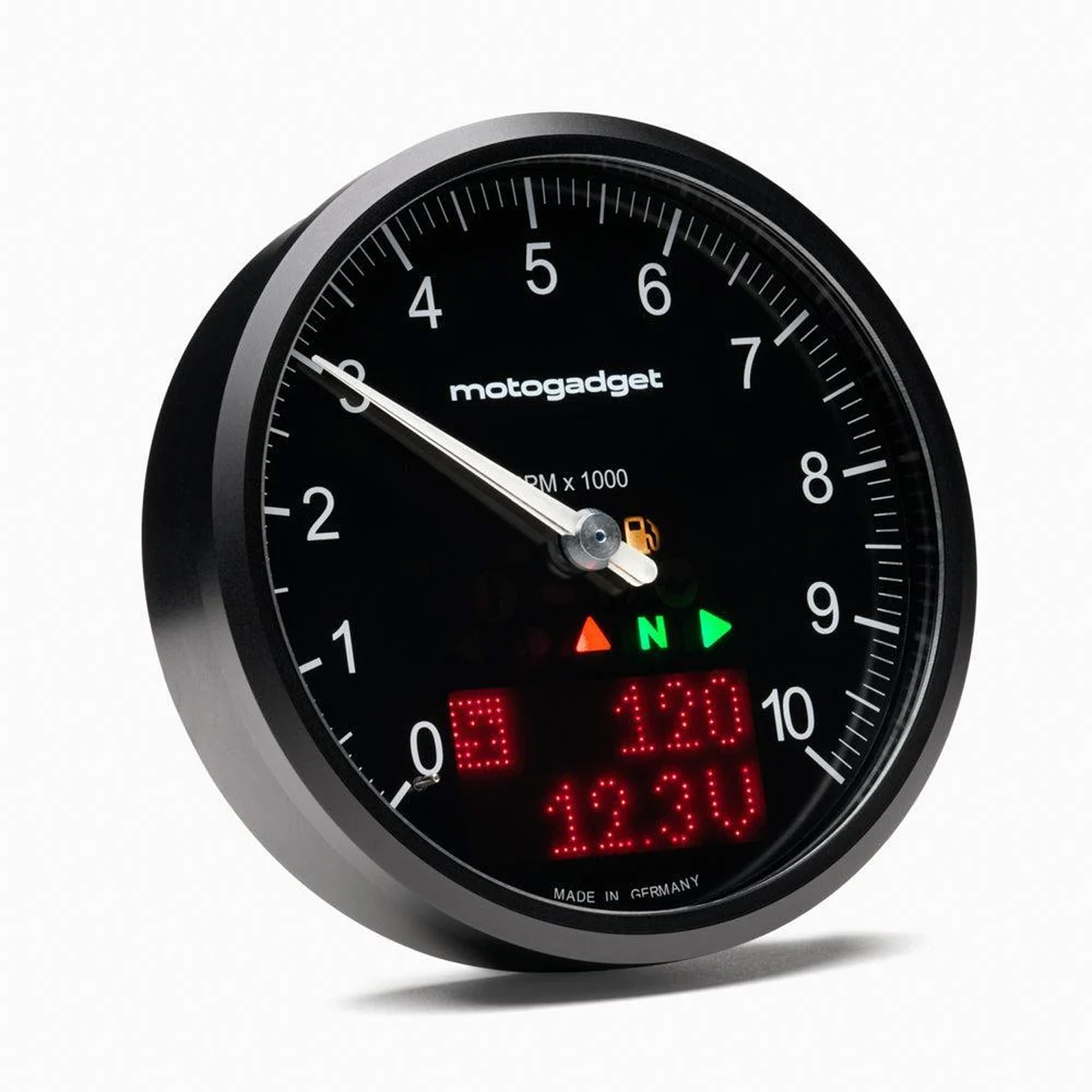

These Motogadget Motoscope Chronoclassic 2 Analogue Gauges include 3x different tachometer ranges and 1x 200kmh/mph speedometer, with invisible LED display. With either an all black finish or a polished rim.
Classic on the outside - high-tech on the inside. Ultra-thin, available in 4 face options.
When switched off, a closed, black dial ensures the perfect look: modern, minimalist and timelessly classic at the same time. The digital display, an in-house development by motogadget, consists of a matrix of 512 tiny, super-bright red LEDs and shines through the dial - unique on the accessories market.

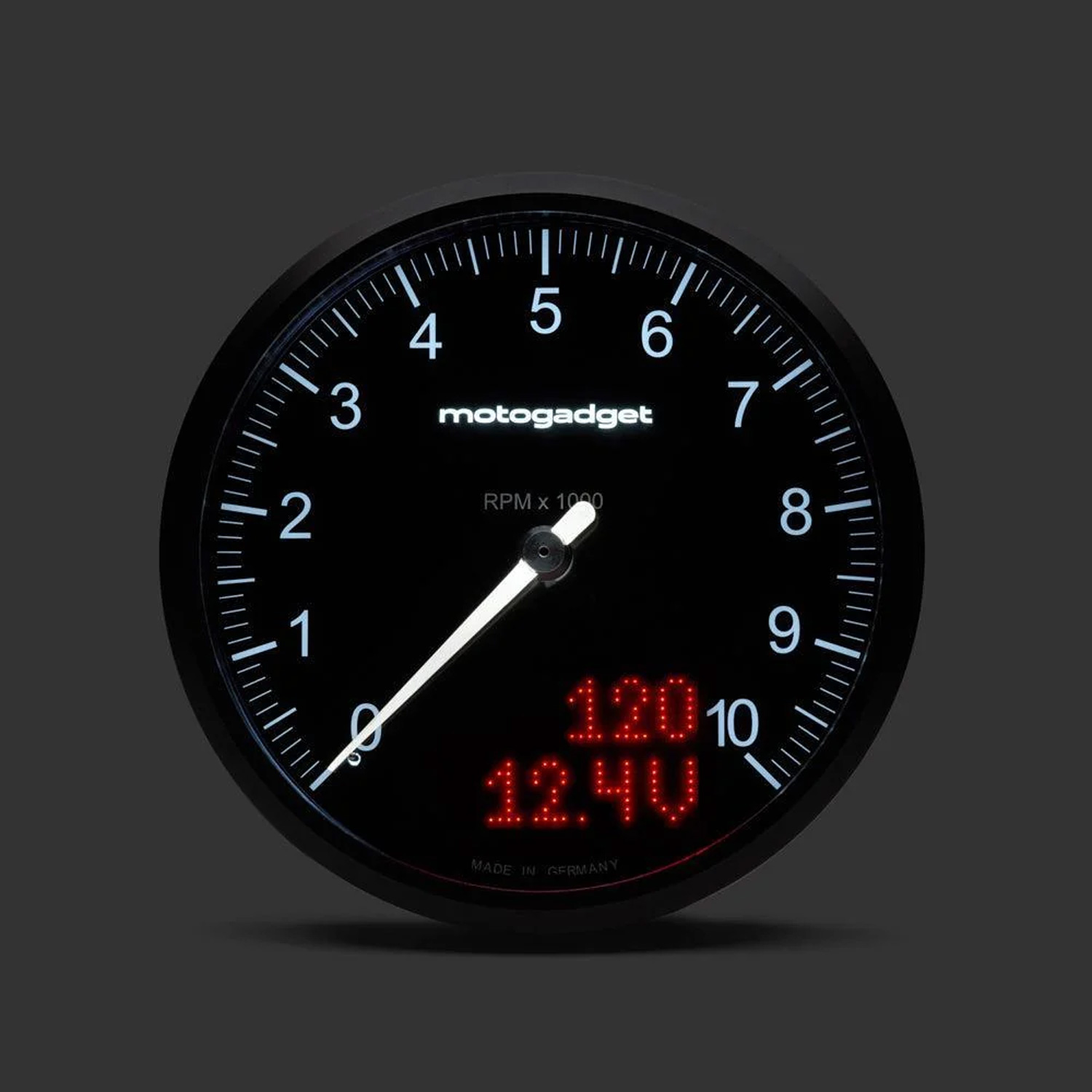

Perfectly legible in direct sunlight, the display has two lines. The top line shows the gear and speed and the bottom line shows the display values, which can be changed at the touch of a button. The illuminated pointer, perfectly illuminated backlighting and automatic brightness adjustment of the matrix LEDs ensure optimum readability even in dark surroundings.
11 indicator lights are invisible when switched off and shine through the dial.
The motoscope chronoclassic 2 speaks the language of all modern vehicle BUS systems and is easy to install thanks to our Plug & Ride versions. With the included vehicle connector, it can be replaced with the original instrument in just a few minutes. Removal is possible at any time.
Universal use on all carburetor models with our motogadget breakout box.
Vehicle-specific Plug & Ride variants are available.
Indicator lights
-
Immobilizer / alarm (Plug & Ride only)
-
Reserve
-
Oil temperature / water temperature
-
Engine control / MIL
-
ABS / ASR (Plug & Ride only)
-
Oil pressure
-
Turn signal left
-
Blinker right
-
High beam
-
Neutral
-
Universal warning light
Pointer
-
Illuminated white
-

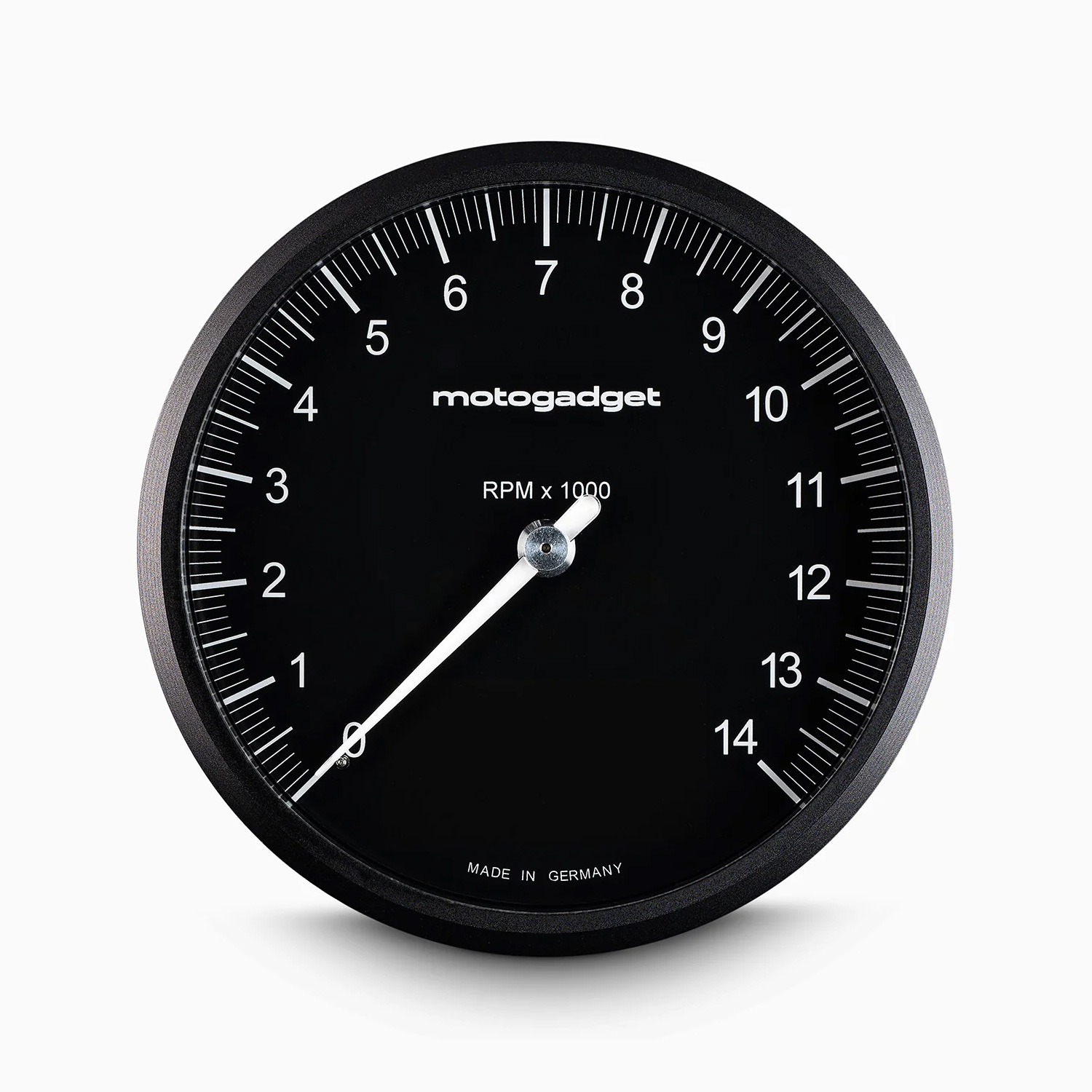

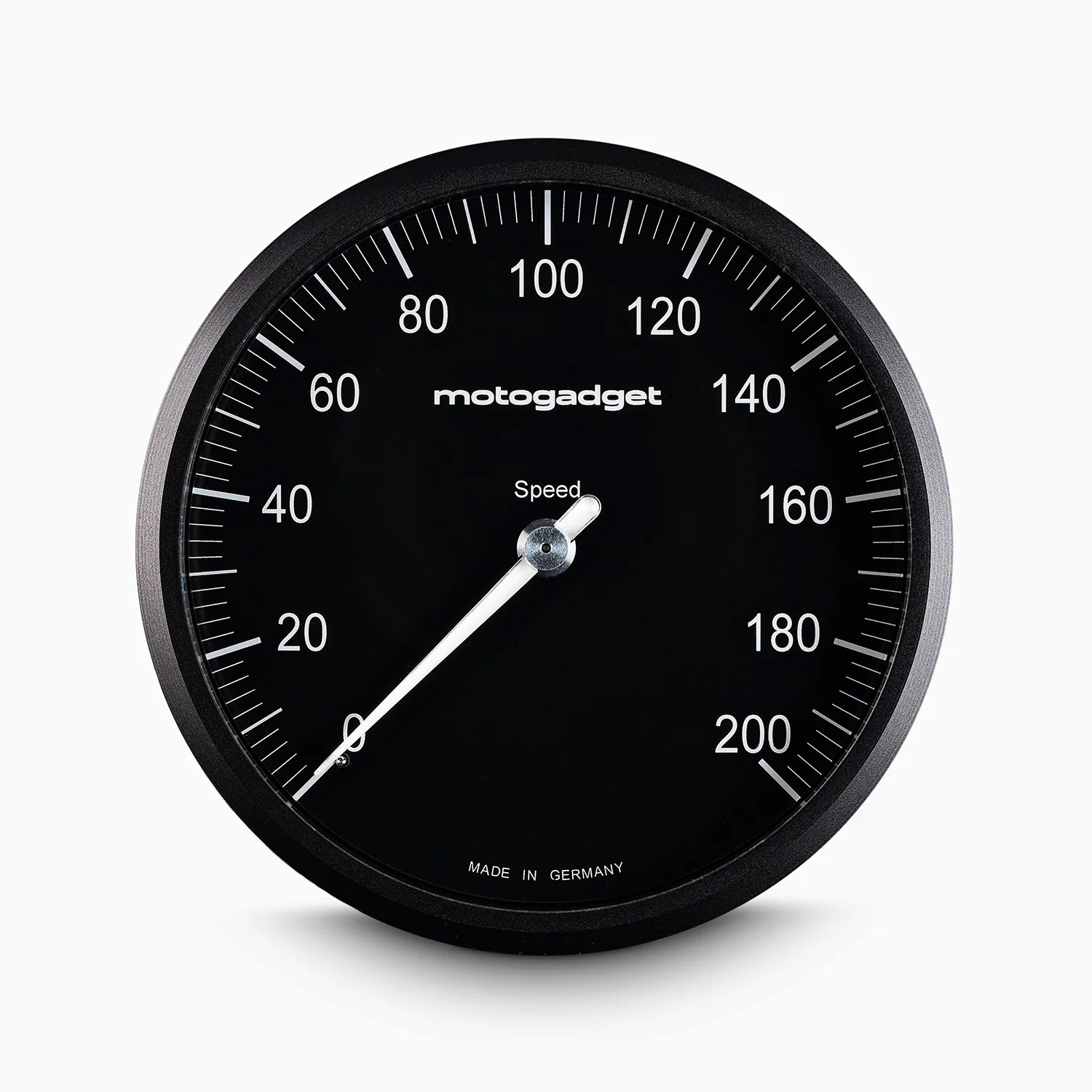

Scale variants: 8 / 10 / 14 kRPM, and 0-200 kmh/mph
Shift lightning
Display
-
Gear indicator
-
Speed 999 [km/h/mph]
-
Trip A 999.9 [km/mi]
-
Trip B 999.9 [km/mi]
-
Odometer 999999 [km/mi]
-
Speed 0-14,000 [rpm]
-
Oil temperature 0-200 [°C / °F]
-
Water temperature 0-200 [°C/°F]
-
Air temperature -20 - 100 [°C/°F]
-
Oil pressure 0 - 10.0 [bar/psi]
-
Operating hours counter 9999 [h]
-
Travel time [h:mm:ss]
-
Clock
-
Time 0-100 km/h - 99.99 s
-
Acceleration 0 - 2.00 [G]
-
Average speed 999 [km/h/mph]
-
Maximum speed 999 [km/h/mph]
-
Maximum positive acceleration 0 - 2.00 [G]
-
Maximum negative acceleration 0 - -2.00 [G]
-
Maximum speed 20000 [rpm]
-
On-board voltage 9 - 18 [V]
-
Fuel gauge 0 - 100 [%]
Adjustable warning messages
-
Oil temperature
-
Water temperature
-
On-board voltage
-
Air temperature
-
Oil pressure
-
Tank capacity
-
Service interval
-
Speed warning (gearshift flash)
Dimensions
-
Diameter: 80 mm (housing)
-

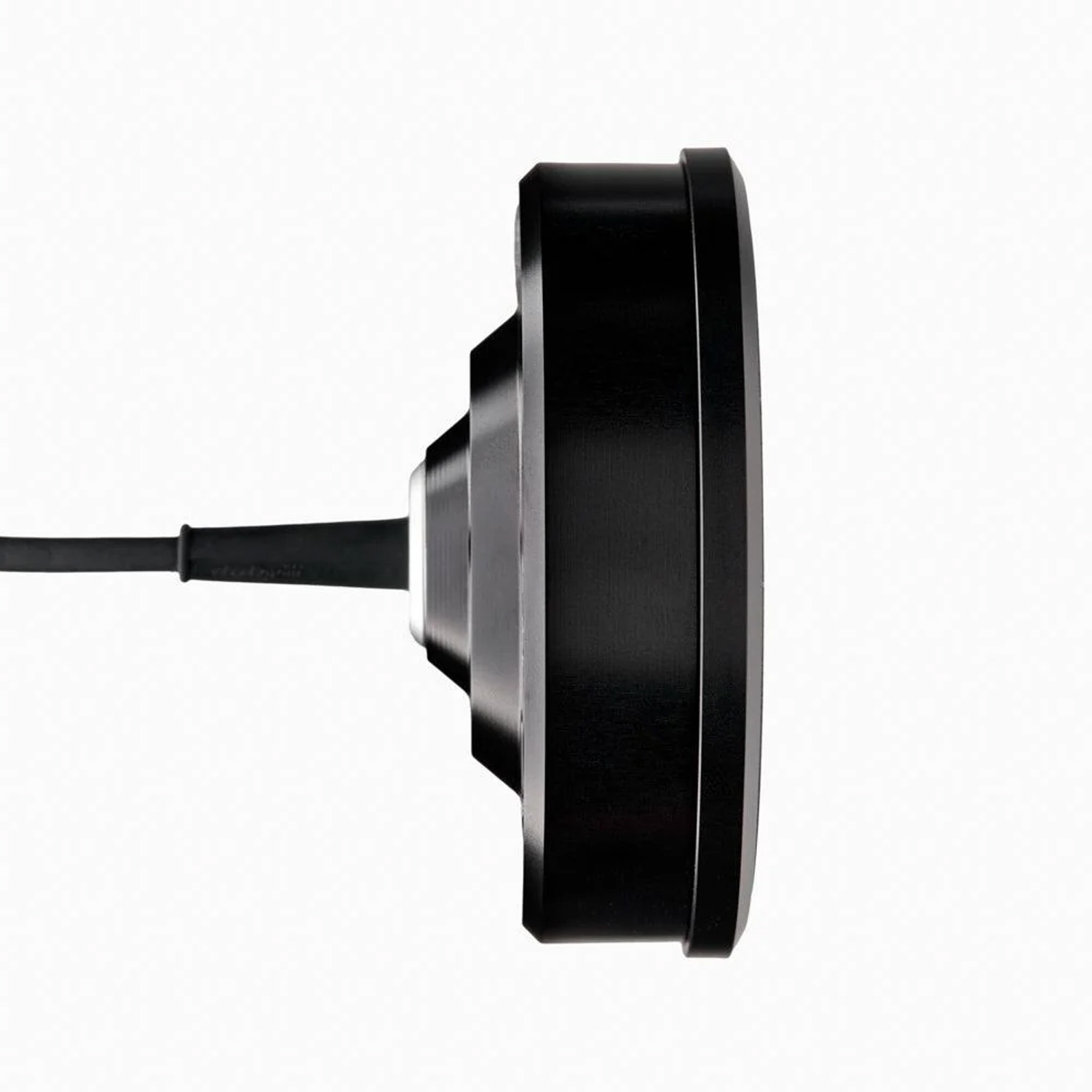

Installation depth: approx. 22 mm
In the box..
-
Instrument motoscope chronoclassic with 75 cm connection cable & plug connection
-
Cable fuse
-
Speedometer sensor with 150 cm connection cable & two magnets
-
Mini push-button
-

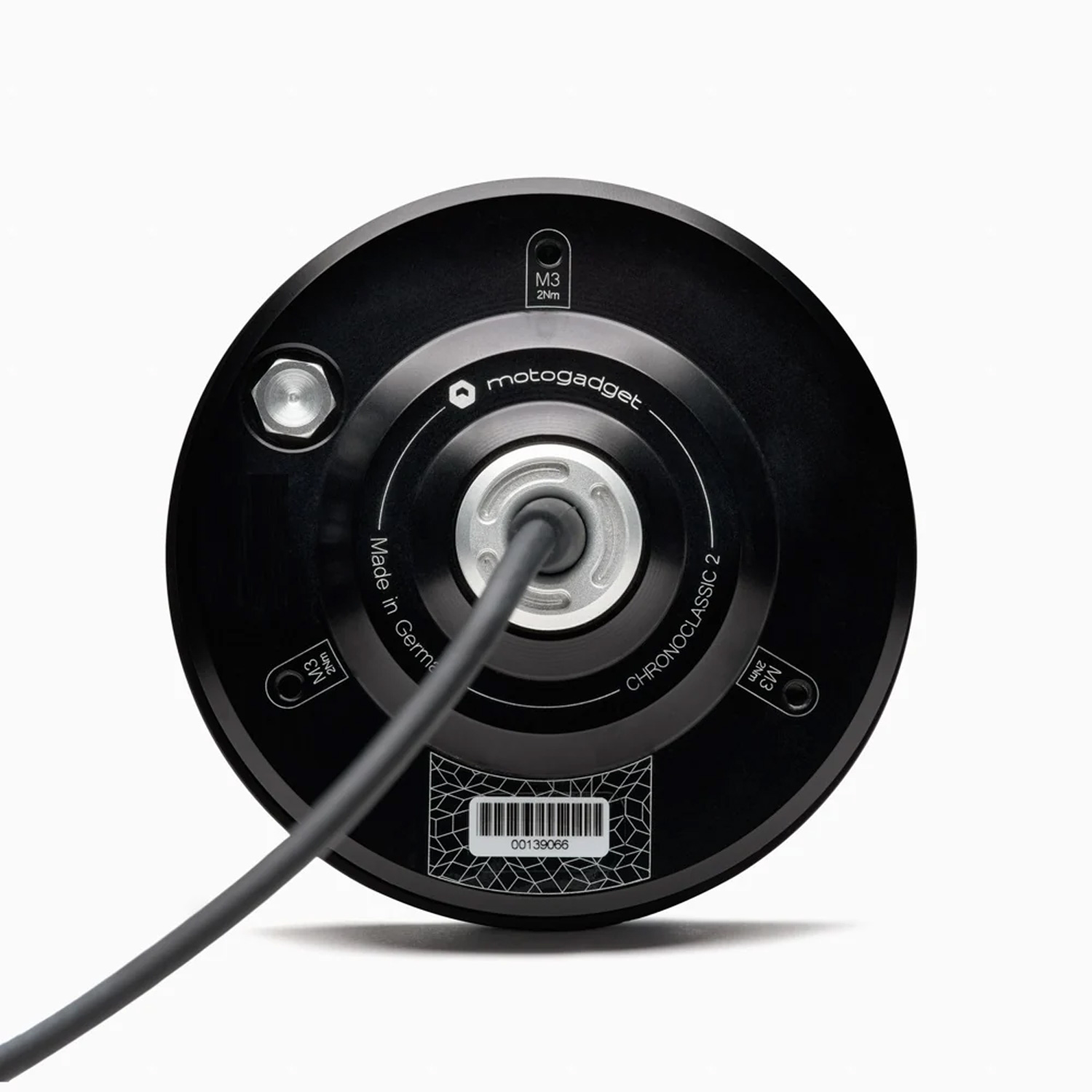

Stainless steel fastening screws
-
QR code for installation and operating instructions
can be ordered separately in the accessories category:
Breakout box (connection of indicator lights and sensors)
Universal retaining plate (aluminium, CNC, black anodized)
