Highsider PECOS Type 6 LED Motorbike Headlight with DRL

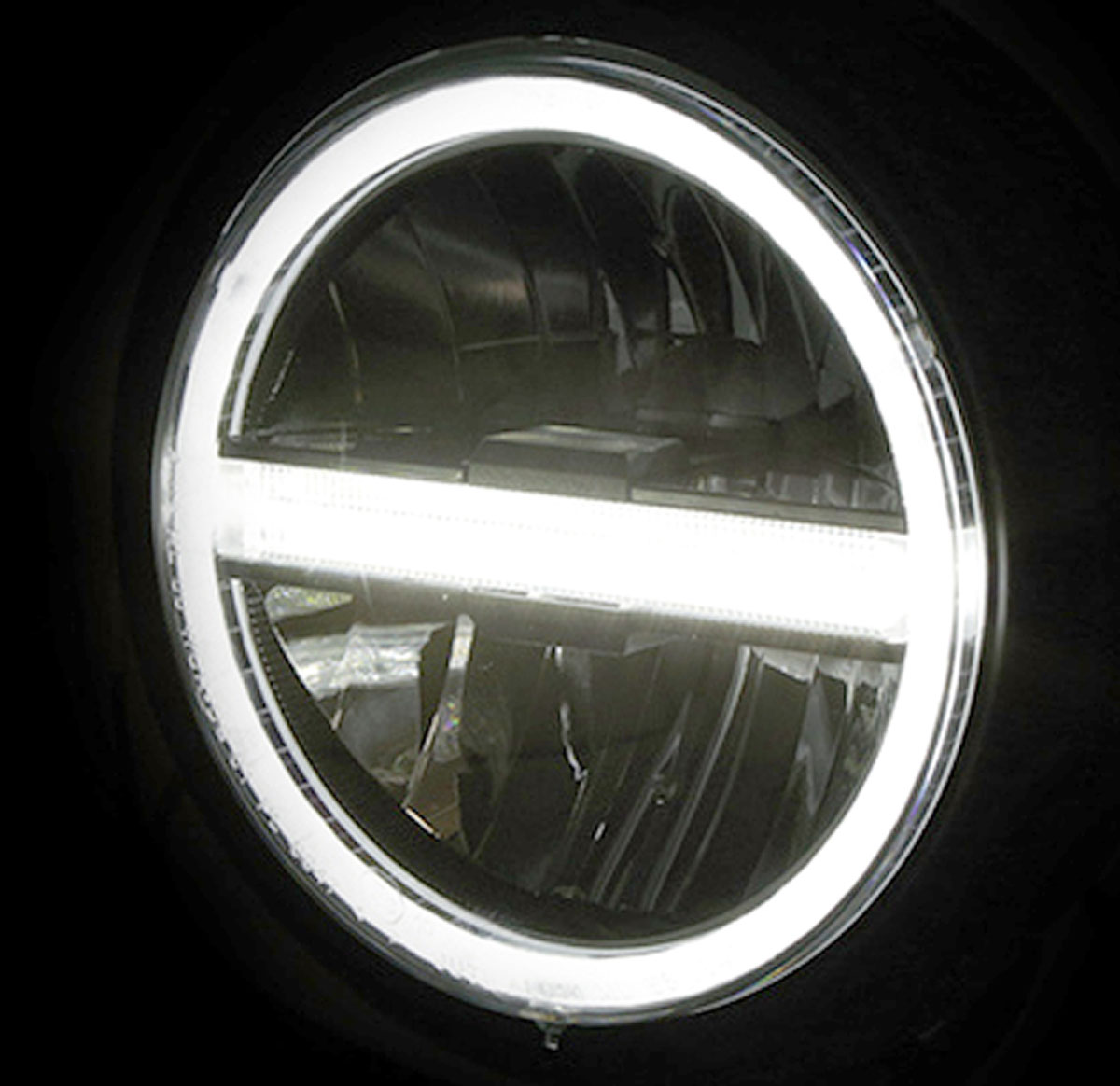

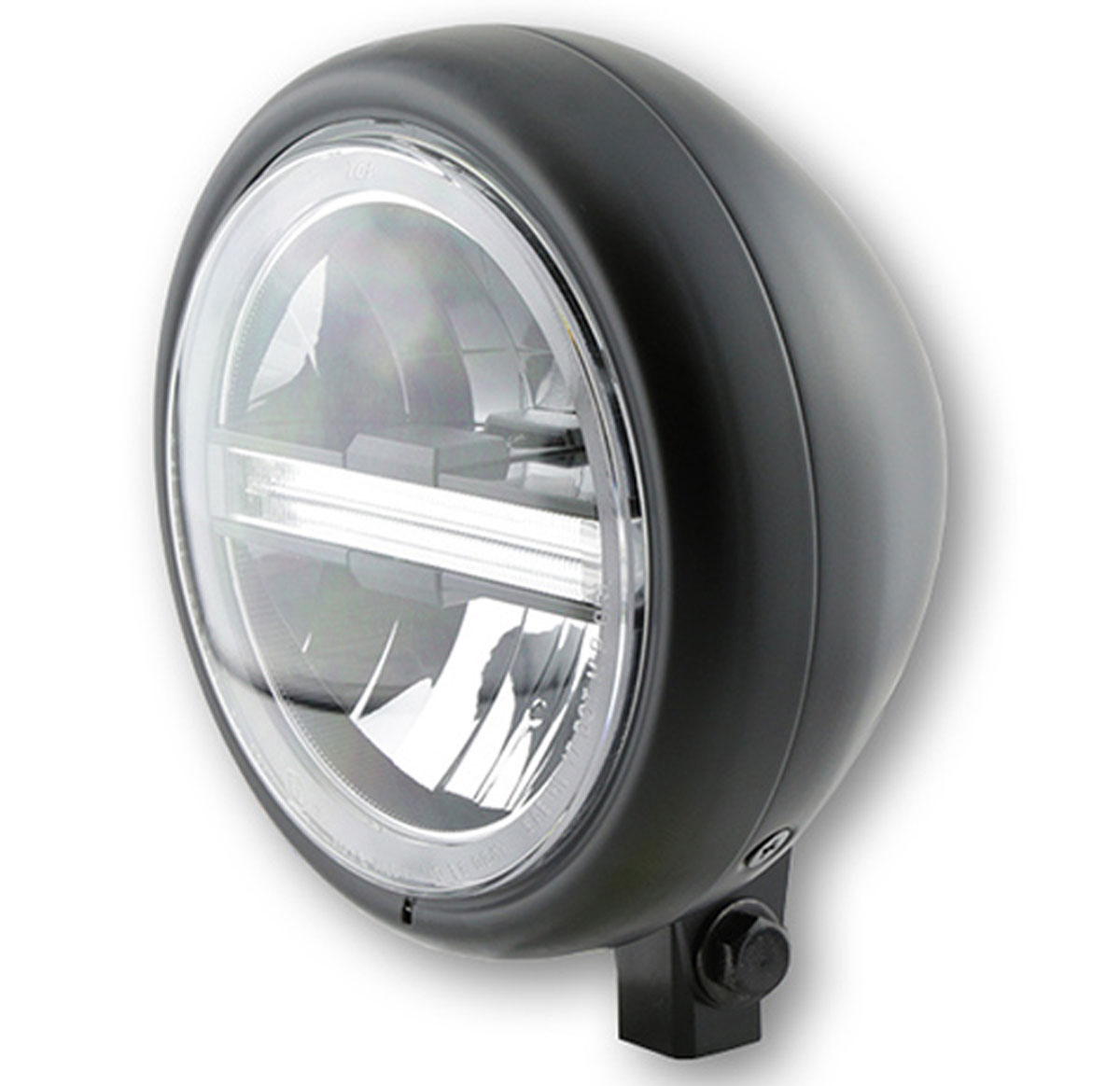

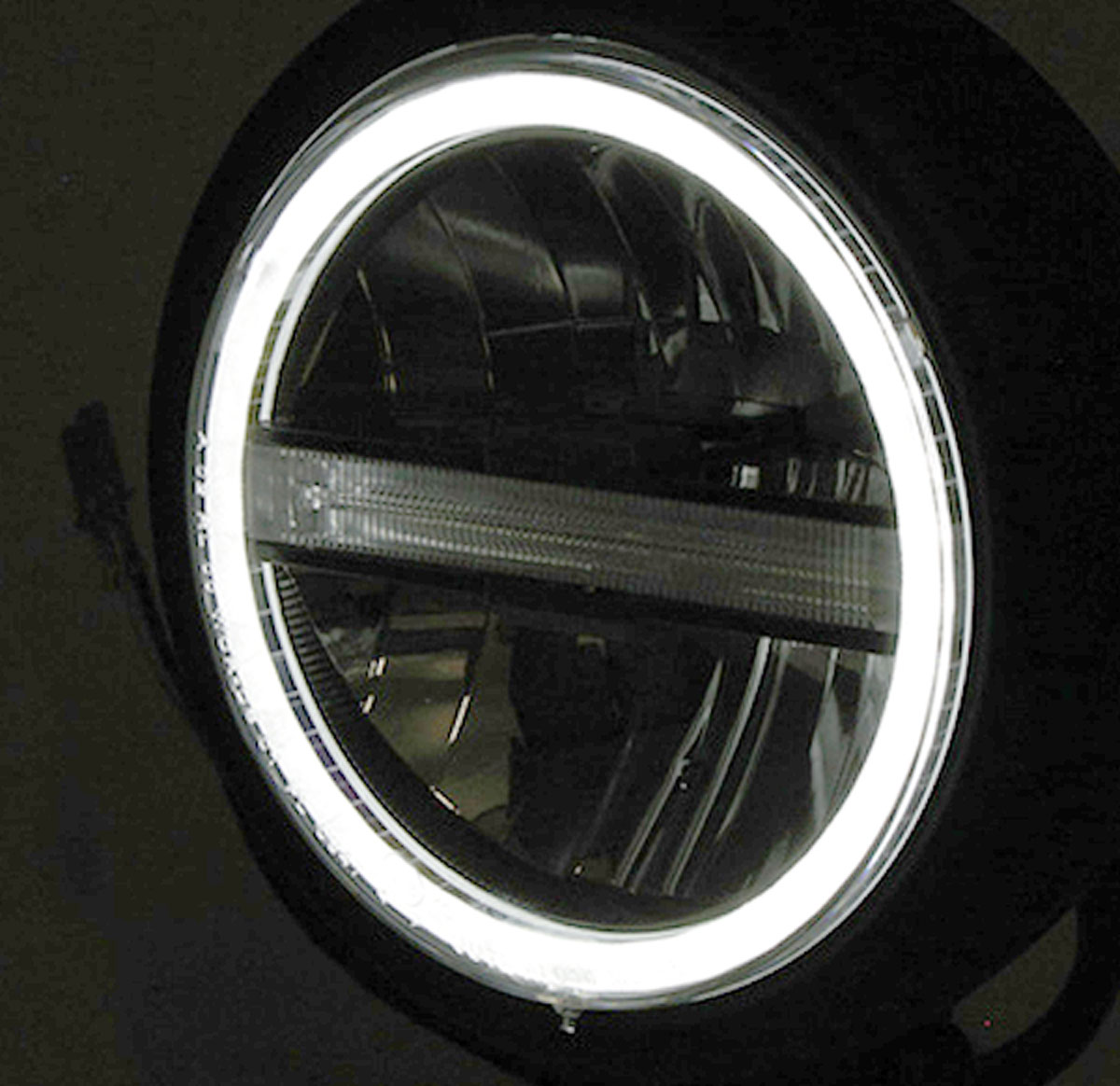

This Highsider 5 3/4 inch LED headlamp PECOS TYPE 6 has a built in DRL daytime running light running across the centre and a parking light ring. It comes in black bottom mount or black side mount versions.

E-marked road legal suitable UK and Europe etc..

The latest light technology and the great light design characterize the PECOS TYPE 6. The special feature of this LED headlamp is the daytime running light in the middle for more visibility in road traffic. The low beam lights up at the upper half, and both halves lights up when switched high-beam on.

Spectacular – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!

Product Feature:

Illuminant: LED
Glass: clear
Chromed reflector with DRL and parking light

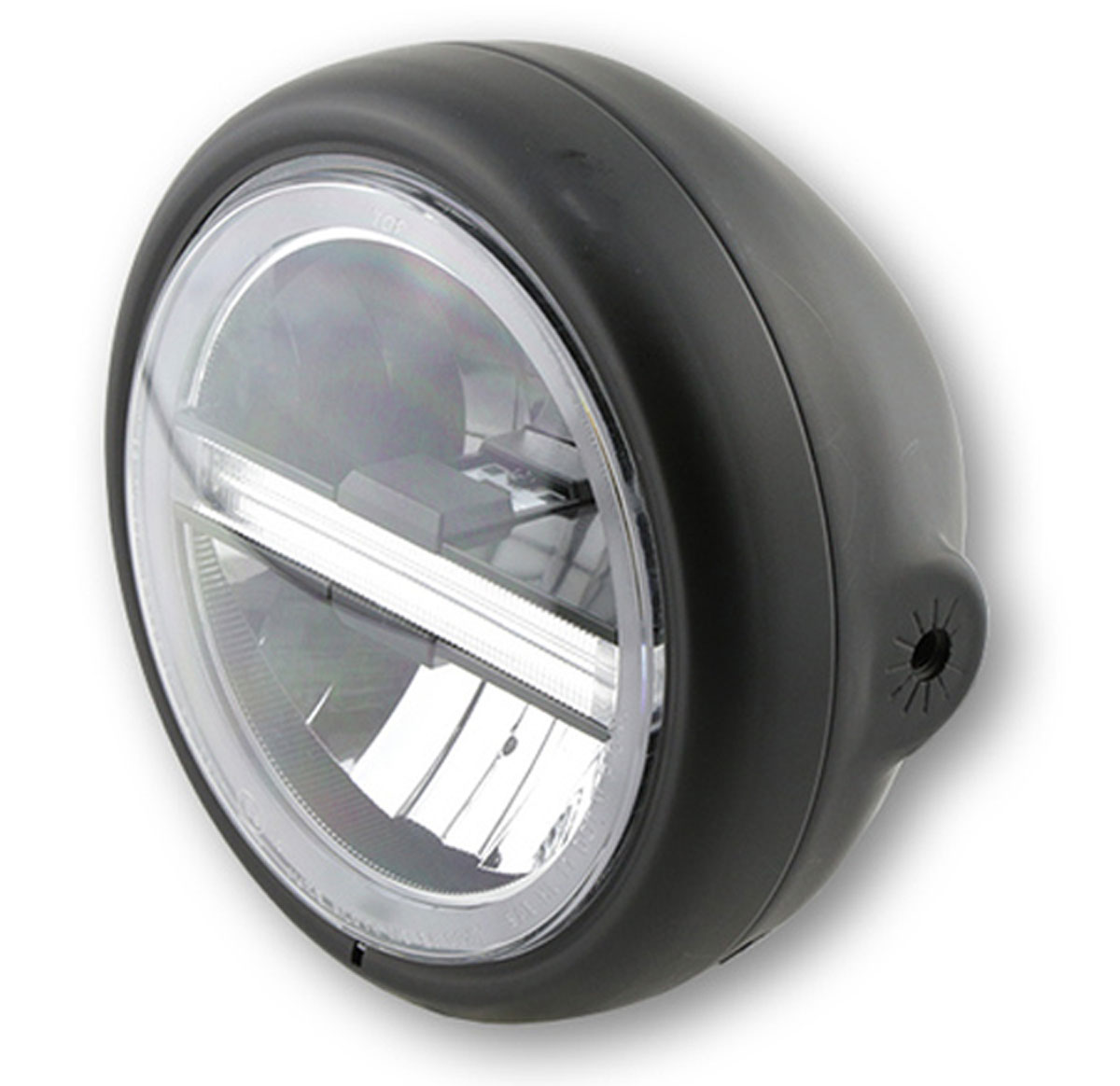

Mounting point: side with M6 threaded

Dimensions:

Housing diameter: 165 mm
Overall Depth: 135 mm
Housing depth: approx. 75mm (Measured from the center of the side mounting holes to the rear)
Distance of the mounting points: approx. 160 mm
Weight: 1250g

Connections

3-pin plug:

White = low beam (+)
Blue = high beam (+)
Green = ground (-)

Separate cables:

Red = TFL/DRL (+) to ignition positive
Brown = parking light (+)

Power consumption:

Low beam 15W at 12V (according to manufacturer 1106.2lm)
High beam 27W at 12V(according to manufacturer 1657.9lm)

Delivery contents: 1 piece

Options

Price: £249.95

Quantity

US$339.15

Manufacturer highsider

Product ID 223-219-222

IAN/EAN: 4054783255603
