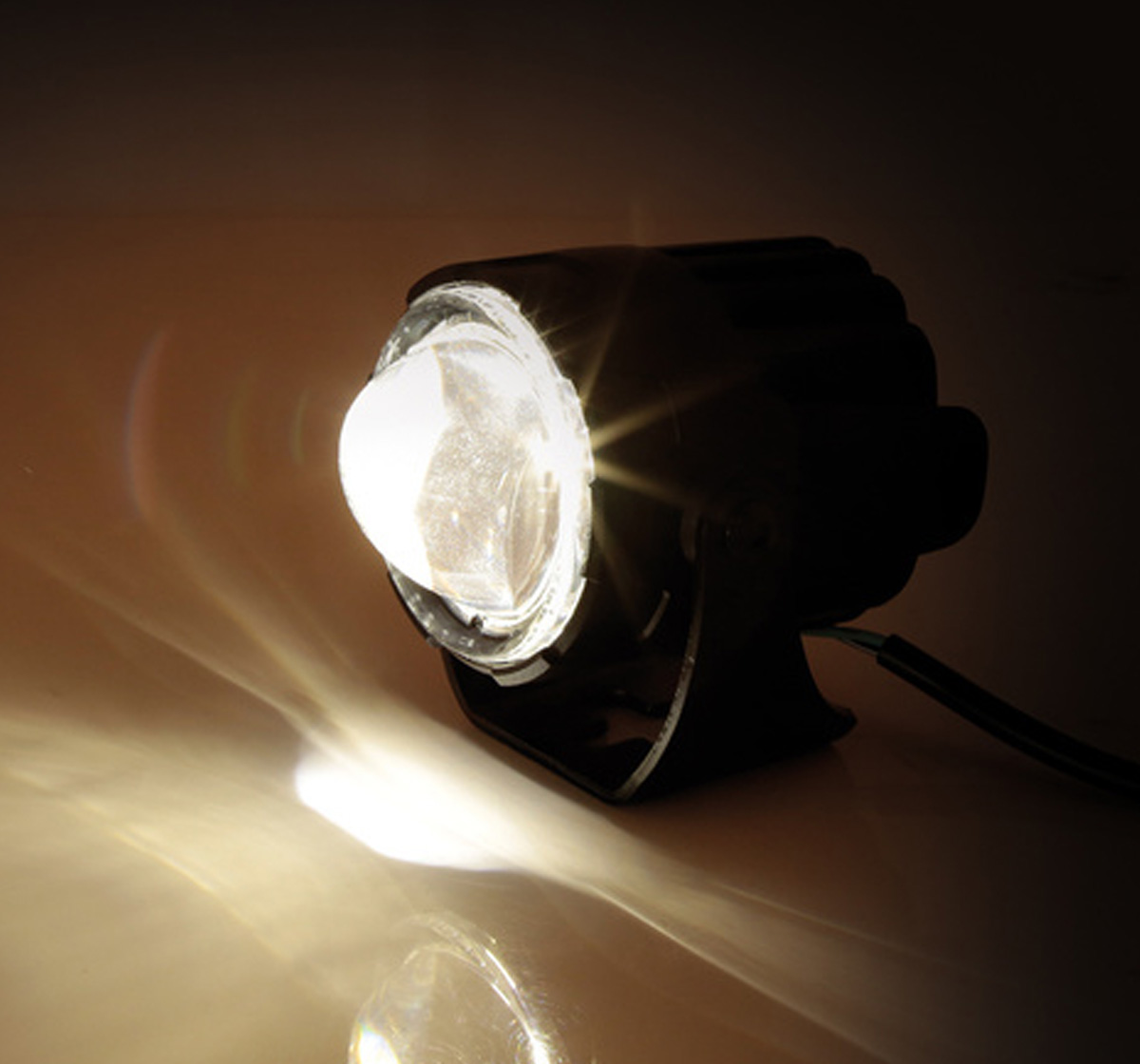

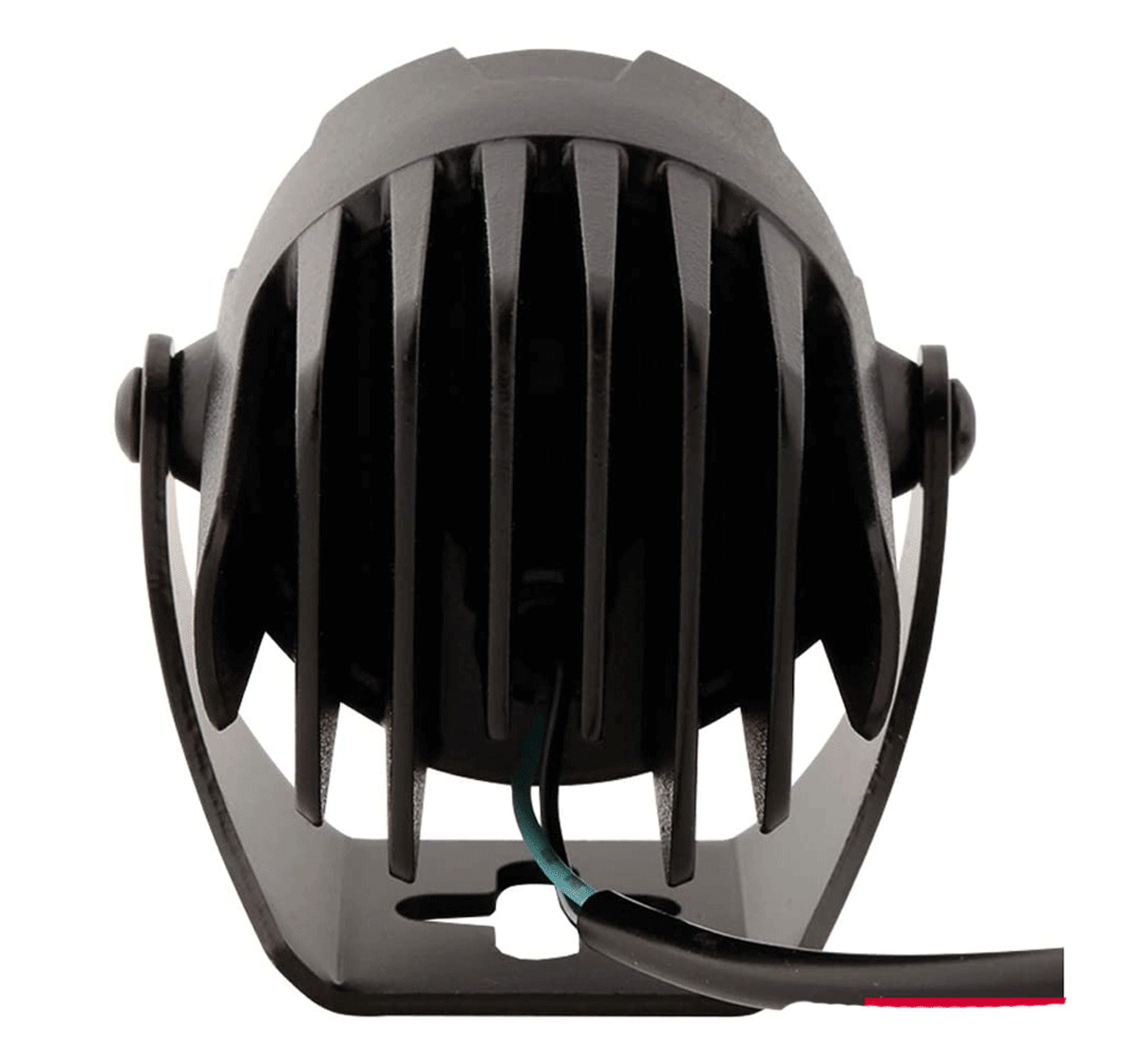

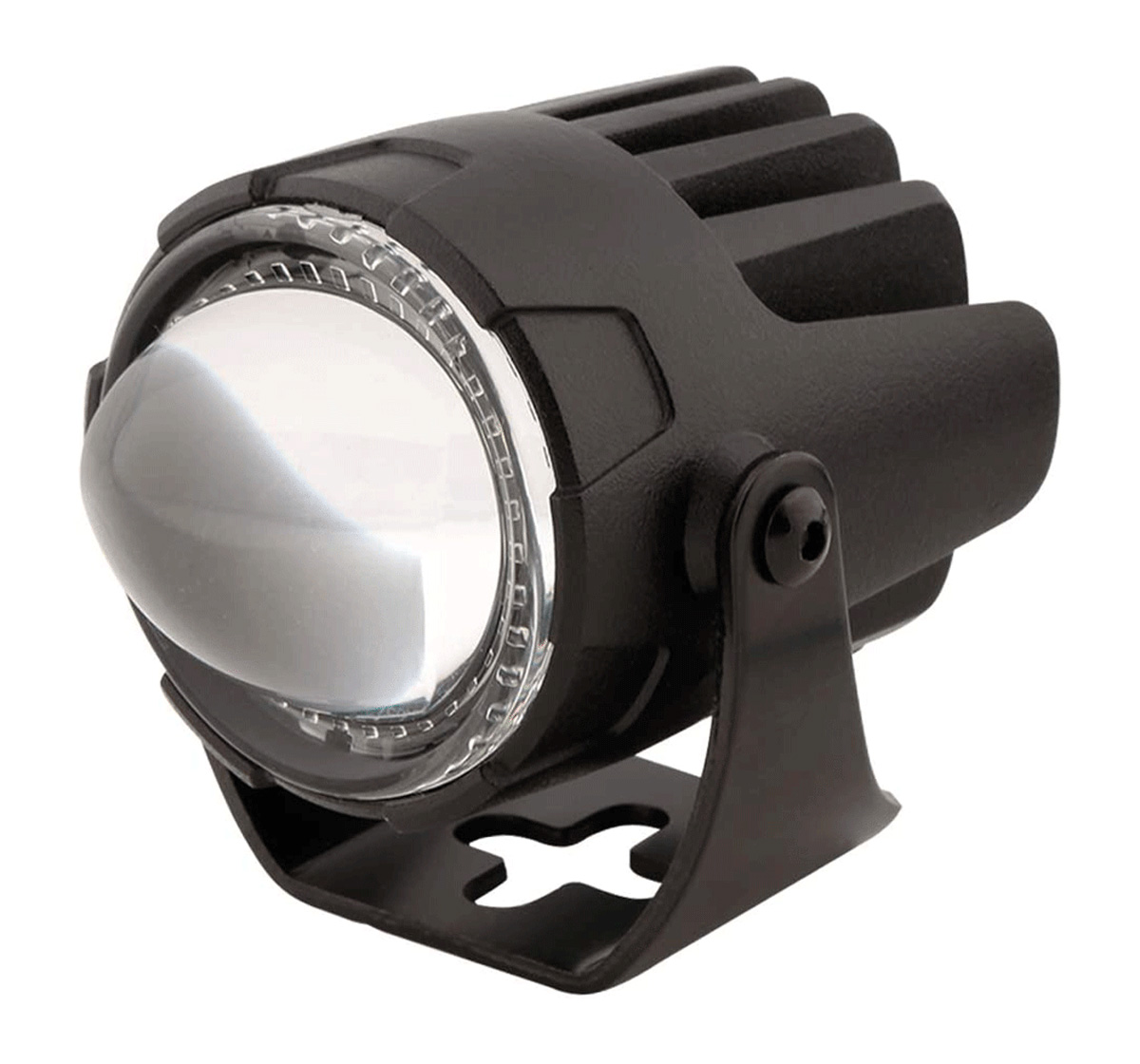

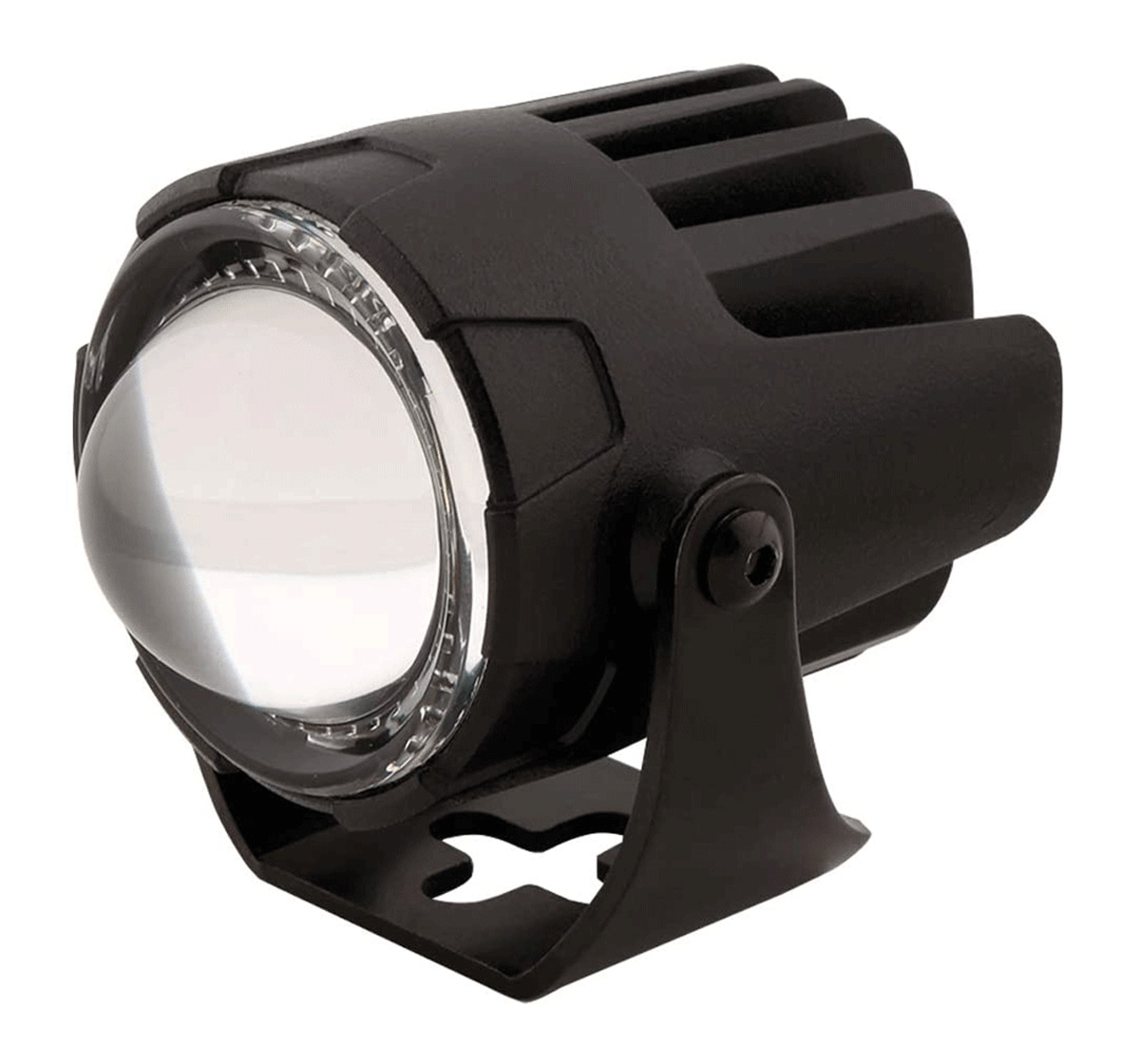

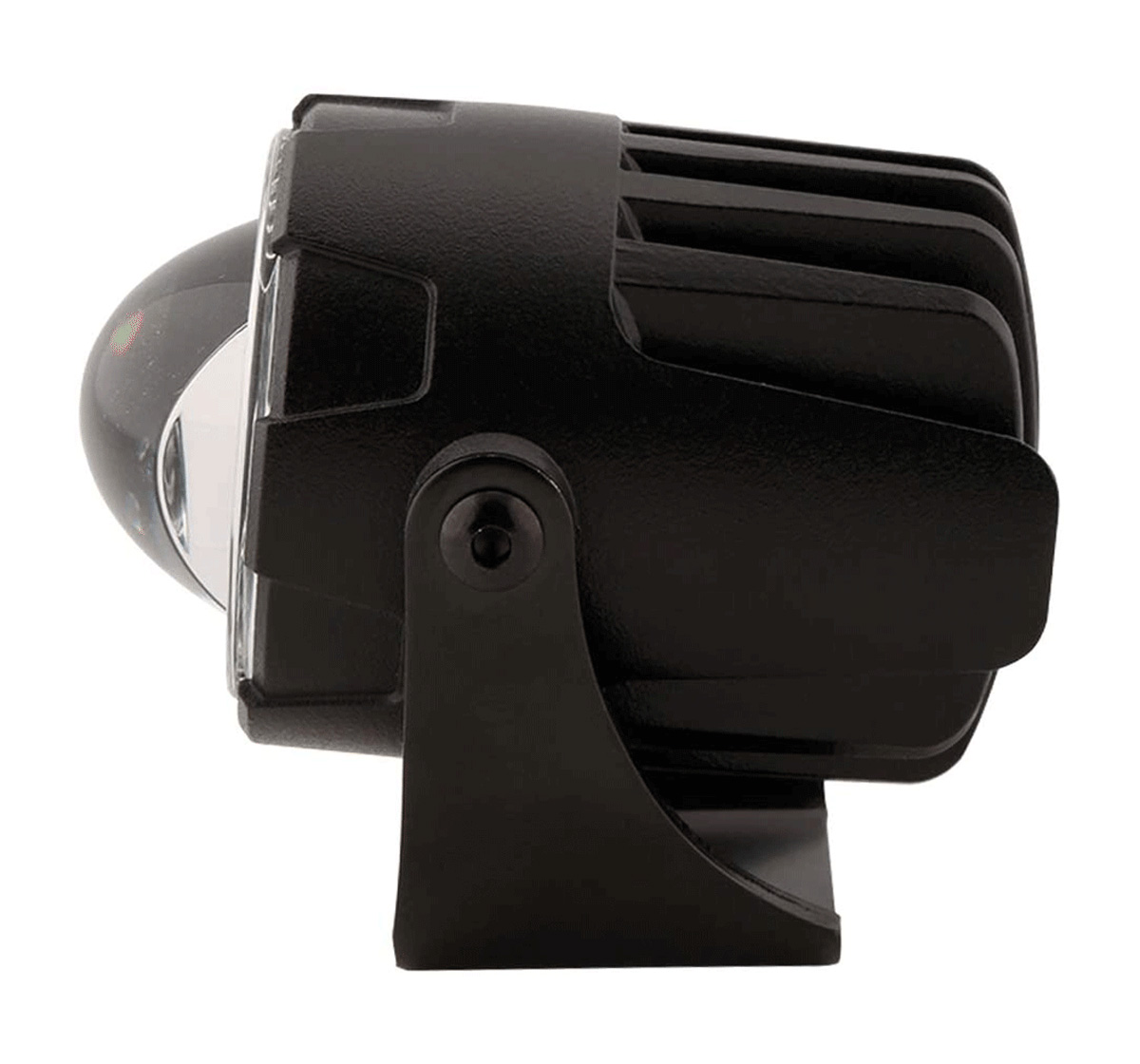

The Highsider pro FT13 Headlights are small, solidly manufactured LED lights with a very high light output and round lens. The matt black housing of the headlamp is made of high-quality aluminium and is equipped with a robust steel bracket.
Main beam version has a side light function..
The LED technology and the insert used produce a symmetrical (OK worldwide), very bright light for optimum perception. Together the FT13 High & Low (purchased individually) are a real dream team. The result is impressive: Ideal for conversions of all kinds, STVO-compliant & E-Marked.
Dimensions;
diameter: 55 mm
diameter lens: 44 mm
distance of the fixing holes: 55 mm
fixing holes on the side: M 4
depth of the housing/from fixing point: 70 mm / 40 mm
Dimensions of the e-box: (must be used)
width: 53.3 mm
depth: 33.5 mm
height: 16.5 mm
weight: 0.25 kg
Low Beam Version Connections:
white = low beam (+)
green = earth (-)
High Beam Version Connections:
Blue = High beam (+)
Brown = Parking light (+)
Green = Earth (-)
Scope of delivery: 1 piece, including mounting material and E-box for voltage control
NOTES:
EMC ready
Dip beam version WITHOUT parking light!!
Main beam version WITH parking light!!
