Every centimetre counts to place the headlight as neatly as possible between the two standpipes in the fork.
"Reduced to the Max" was the premise for the development of the innovative Frame headlight mount. With the simplistic aluminium ring it is possible to mount LED headlight inserts free-standing on the motorcycle. The deliberate omission of a headlamp housing enables an unbeatably slimline installation and also provides better cooling of the LED unit.

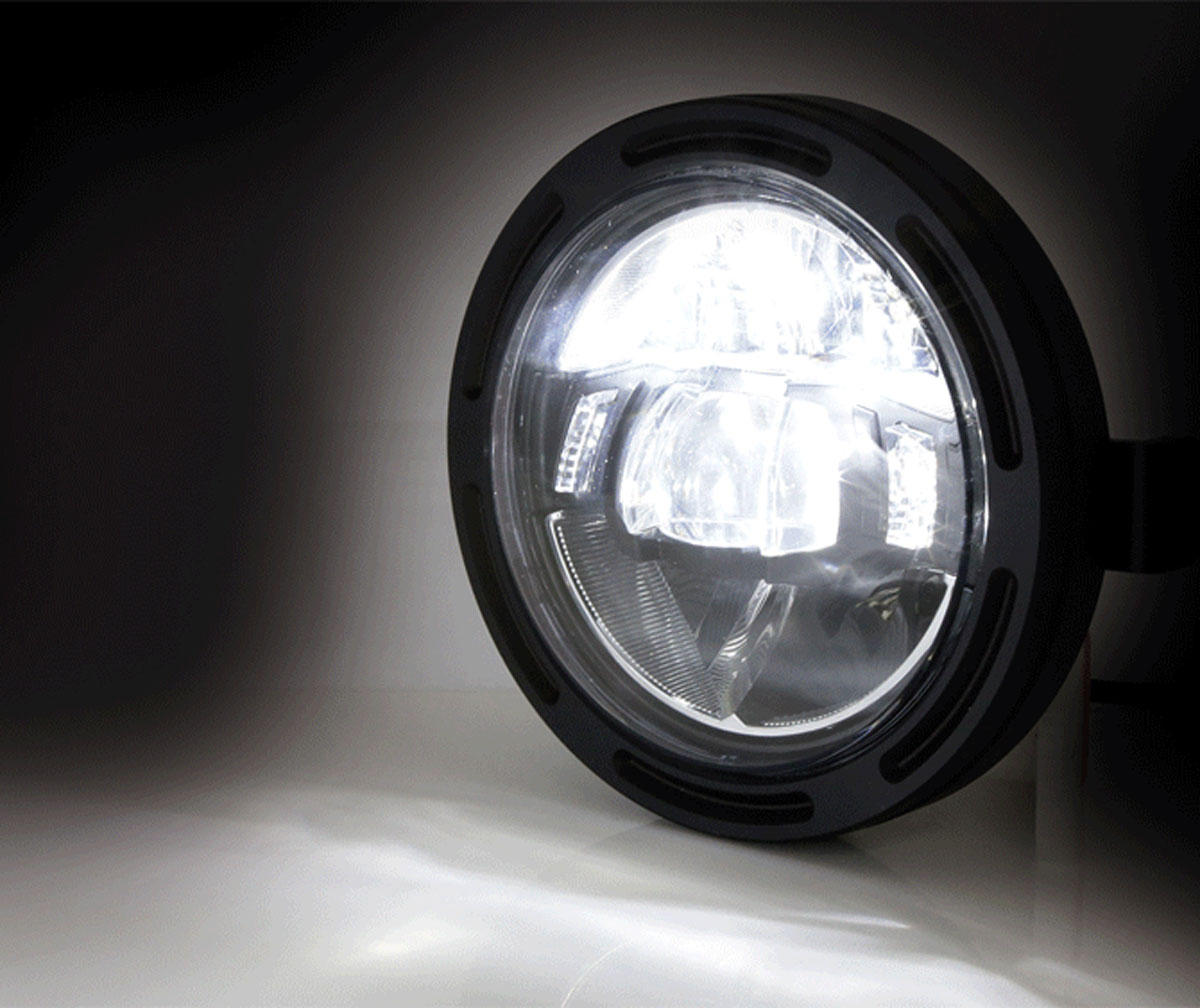

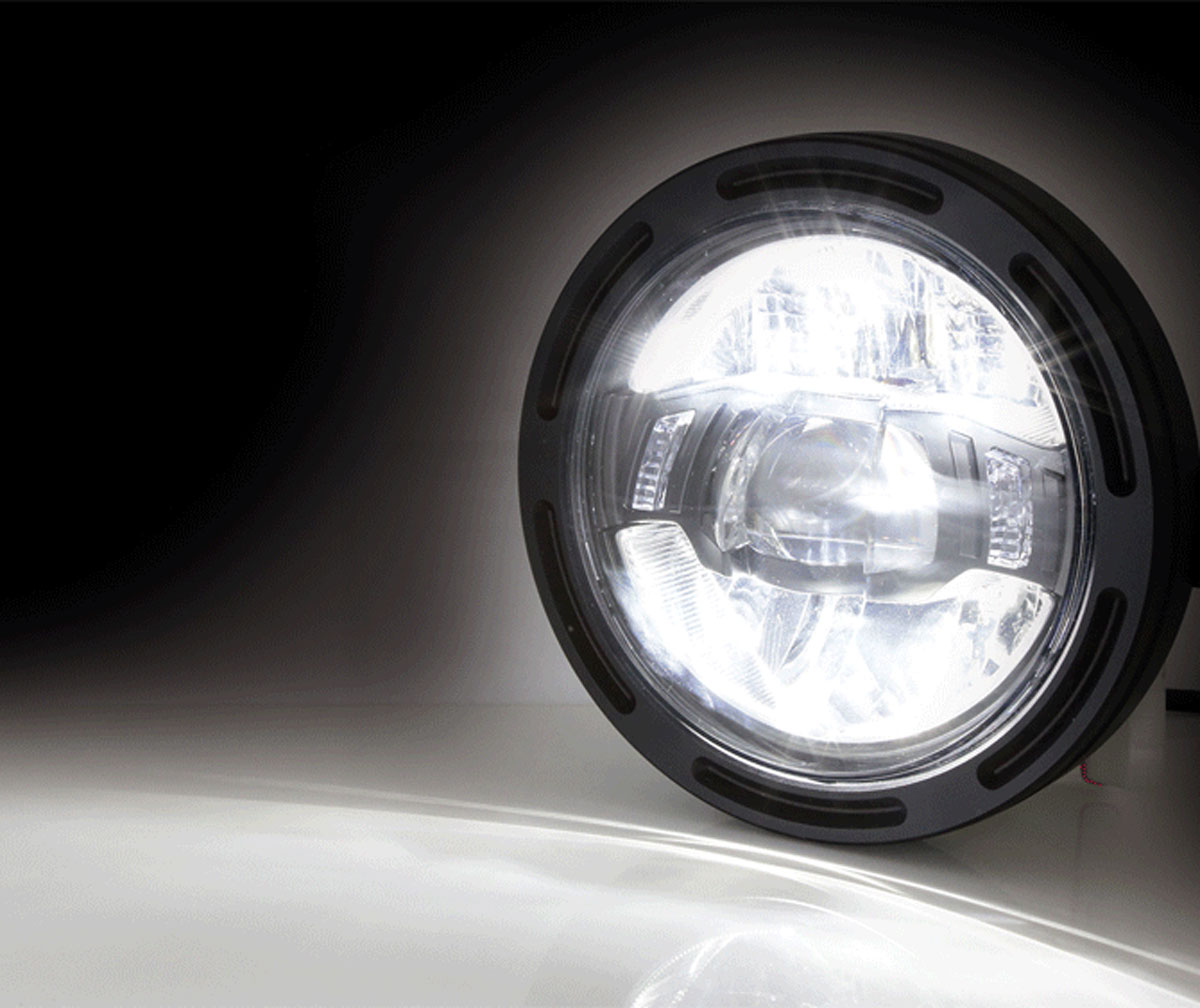

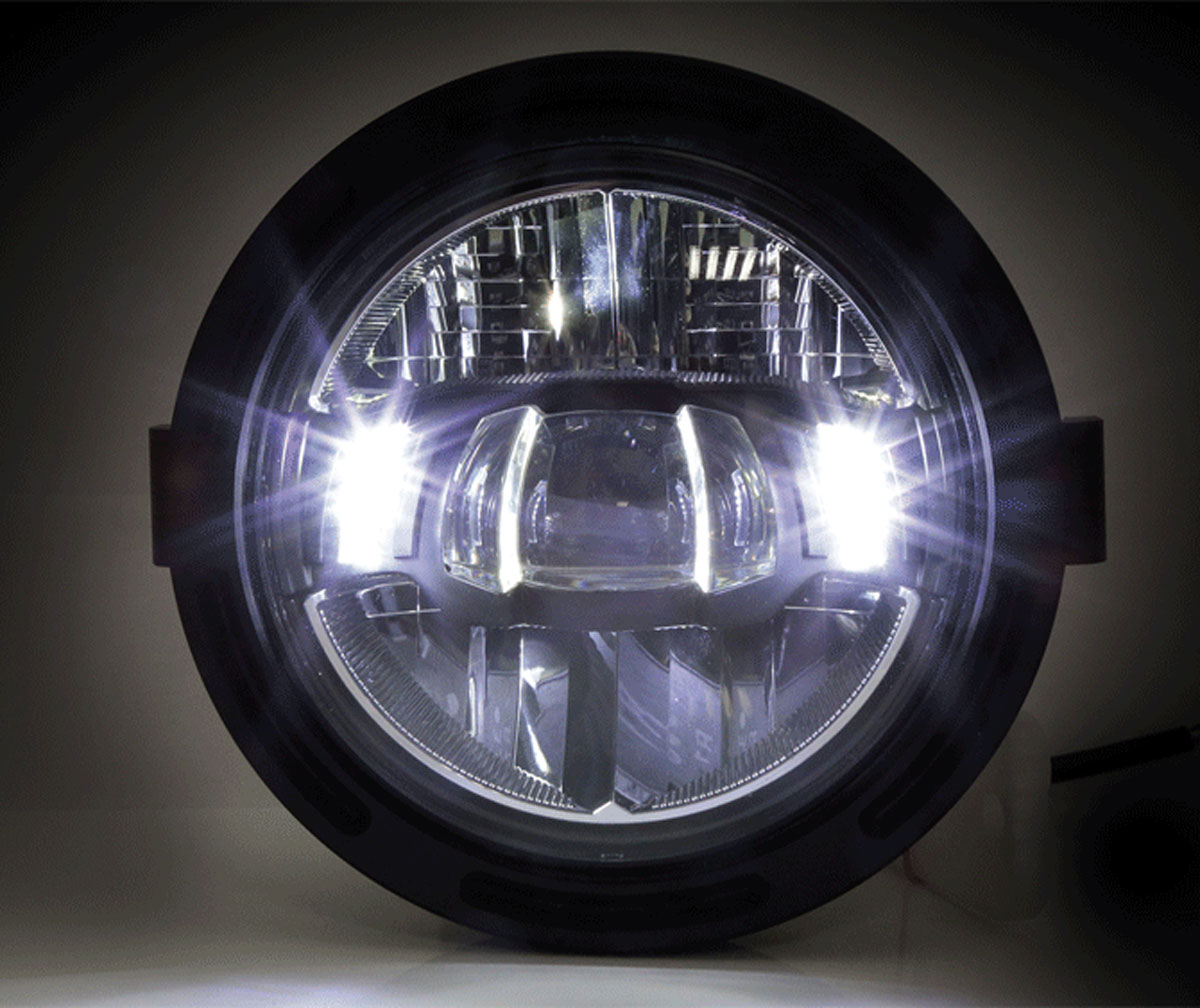

The Highsider Type 10 5.75inch LED headlight provides both high and low beams with a (symmetric - suitable for use worldwide) prismatic chromed reflector, clear lens & built in position light. The dipped beam illuminates the lower half and middle of the headlight, and the upper half lights up when high-beam is in use. Position lights are on the left and right side.
The Type 10 headlight is equipped with a symmetric dip beam pattern it is fully E-marked and road legal for all countries, eg UK and Europe, USA and Australia.
For variable mounting of the headlamp two different mounting systems are available;

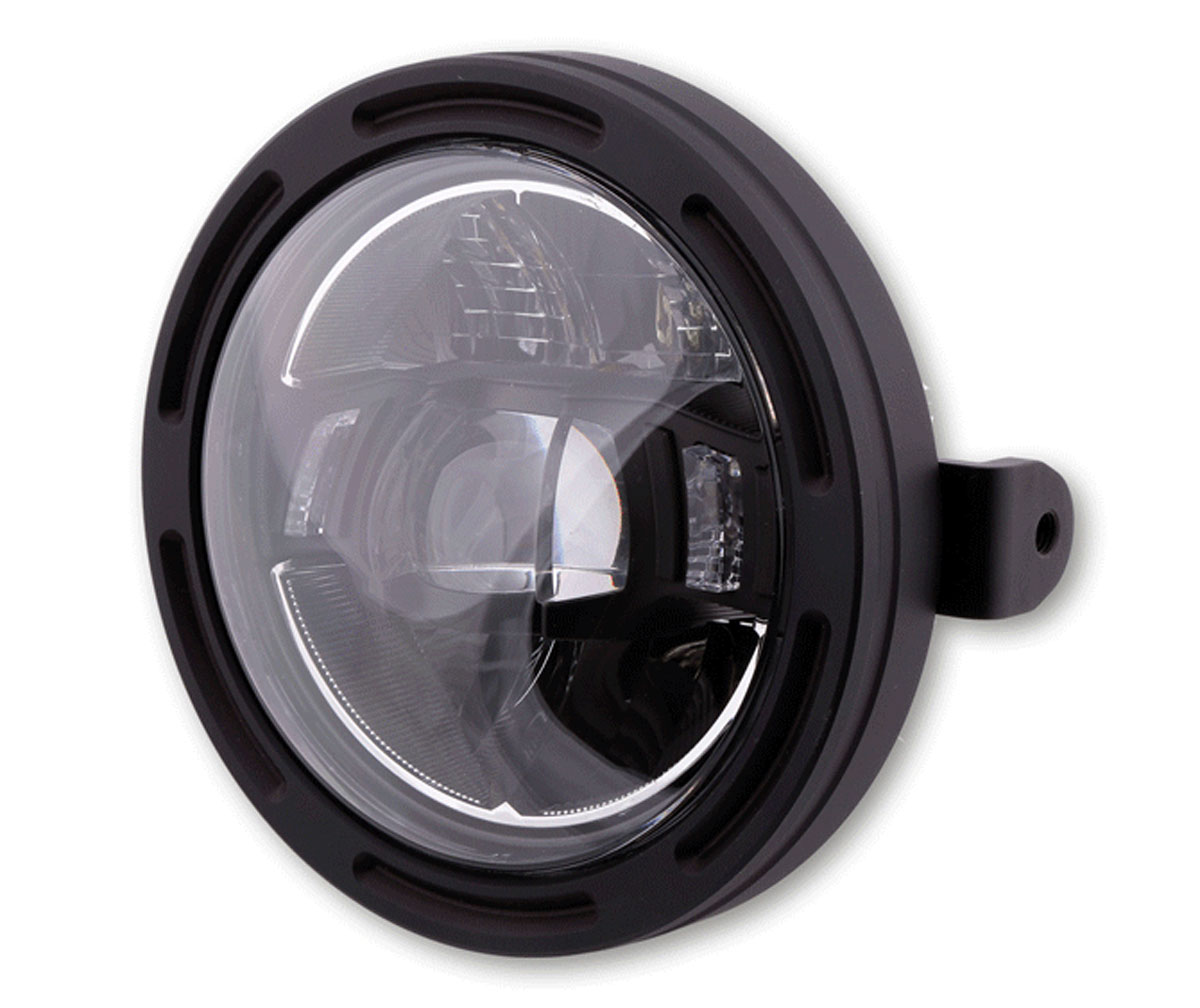

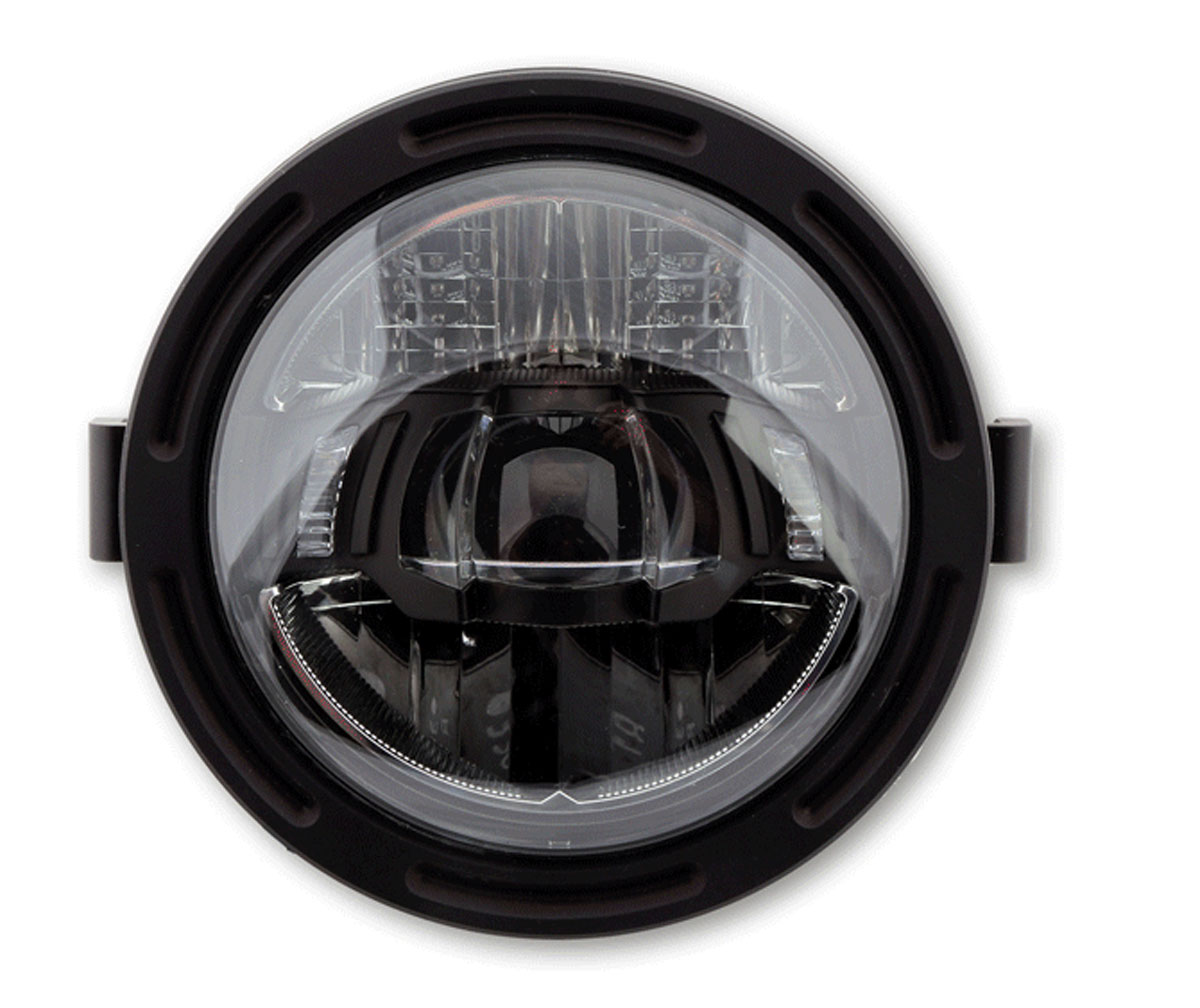

- Side Mount, the conventional screw connection at the side of the lamp holder. The side mount holders can be mounted in three positions, thus compensating for 32mm in installation depth and 46mm in width.

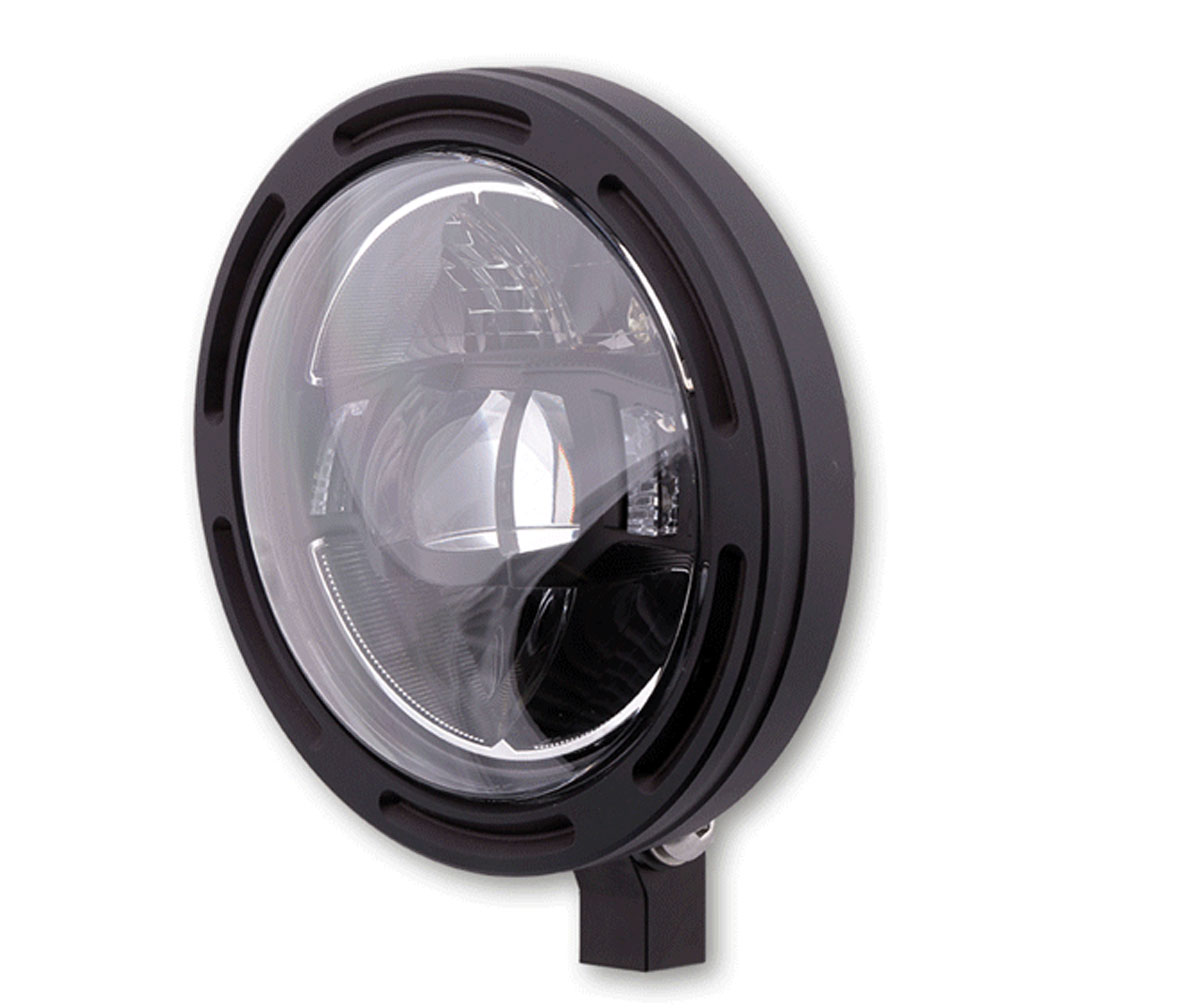

- Bottom Mount, attachment at the bottom for screw connection to the fork bridge
-
Round 5.75" inch headlight with CNC mounting ring and mounting kit
-
Mounting WITHOUT a headlight housing
-
Improves cooling
-
Multiple mounting possibilities
-
Flat mounting
-
Modern optics, stylishly innovative
-
Chrome-plated reflector with clear glass
-
Position light
-
Symmetrical luminous flux
-
E-Marked
Dimensions
-
Housing diameter: 165 mm
-
Lens Diameter: 135 mm
-
Rear Housing Diameter (behind Frame ring): 145 mm
-
Rear depth: 60mm (from rear of Frame ring)
-
Frame ring depth: 27mm
-
Variant side mounting: M8
Connections, power consumption (3 pin connector):
Red = Low beam (+)
Yellow = High beam (+)
White = Position light (+)
Brown = Ground (-)
