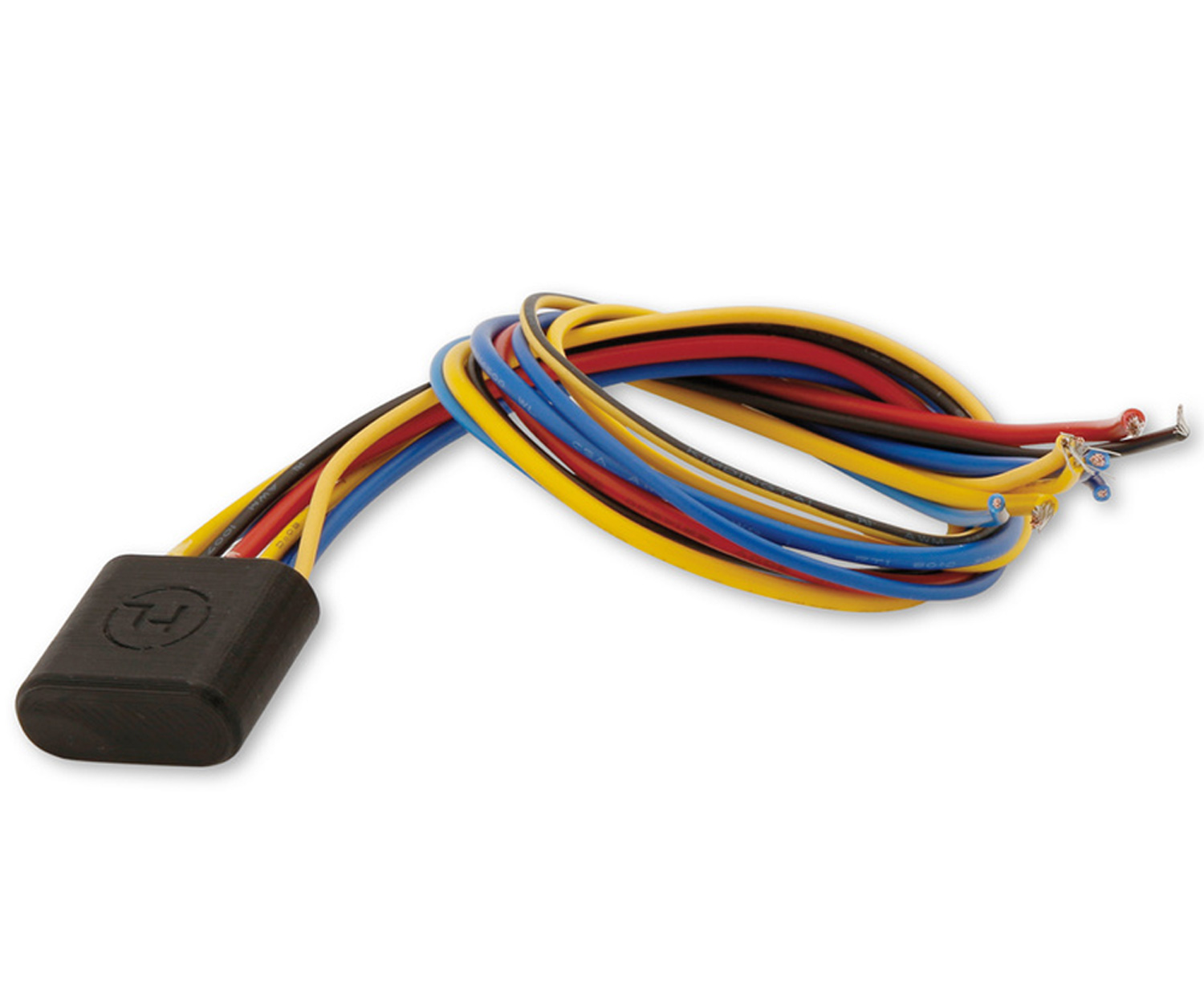

This Highsider pro Electronic Two Channel Relay has a 6~14V operating range with inputs for non-latching switches. Acts as two independent relays..
This relay can also convert pulsing ground turn signal inputs into positive signals, which is useful for Indian Motorcycle indicators such as the Scout Bobber.

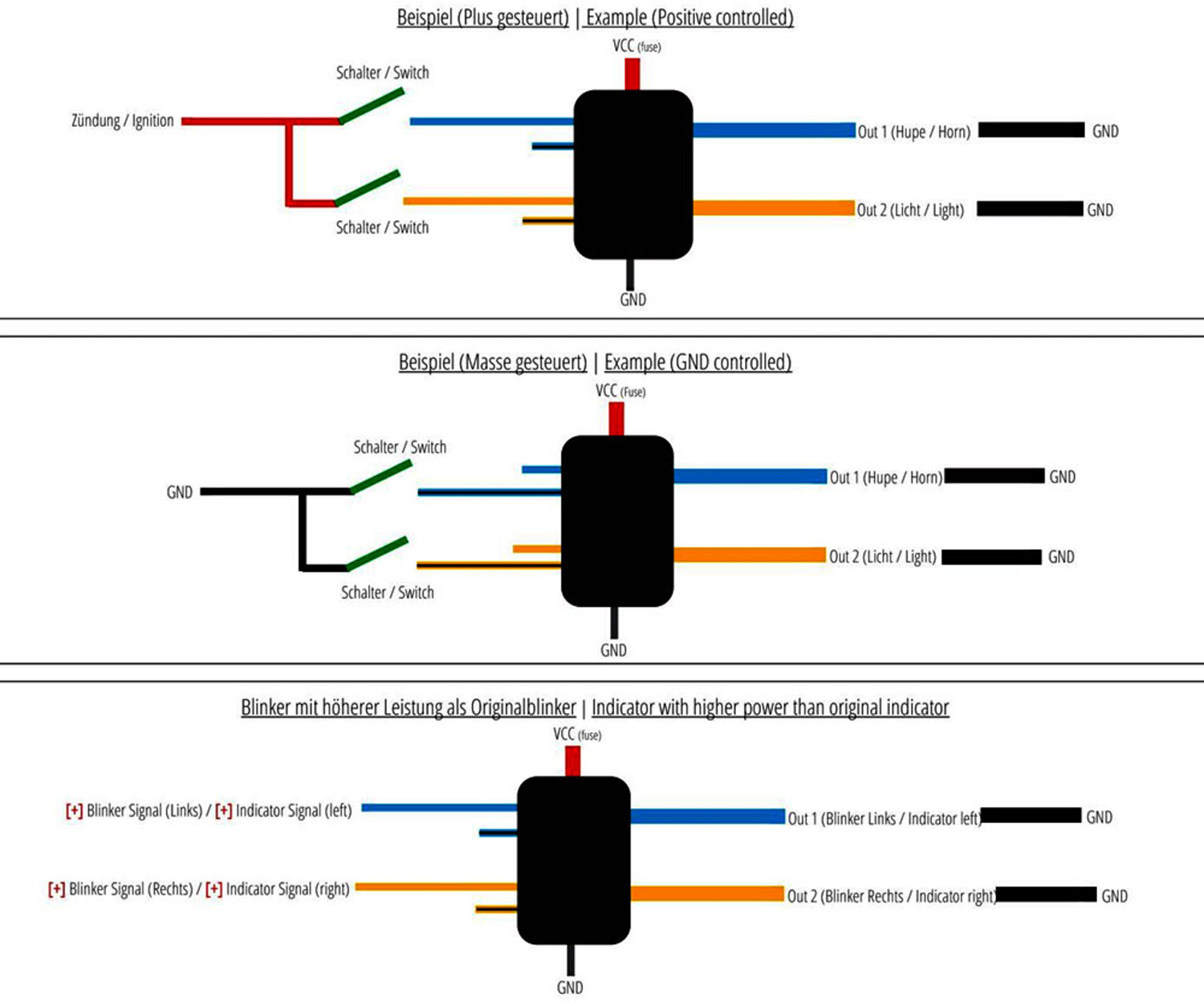

When one of the two inputs is connected to ground via a switch the corresponding 12V output is switched on.
The outputs can supply lines up to 40W in continuous operation.
Typical power consumers, which are controlled via non-latching buttons(e.g. horn, starter solenoid), two channel relays can be controlled with the HIGHSIDER.
Using the relay instead of connecting the load directly to the switch,enables the use of smallest cable cross sections and buttons with low current values.
Product advantages:
-
Extremely thin cable cross-sections for connecting the buttons
-
Use ofSwitches for low currents in spite of loads with high currents
-
Extension of the service life of switches
-
2 independent channels
-
Very small dimensions and low weight
-
Fully sealed product (waterproof)
-
Smaller and more flexible than expensive multi-channel switchboxes
-
Protection against all possible wiring faults
-
More flexible than - ALL IN ONESMART BOXES -
Dimensions:
-
Width: 17mm
-
Depth: 9.5mm
-
Height: 17mm
-
Weight: 9 g
Connections:
-
Red (thick) = ignition plus 12V(+)
-
Yellow (thick) = Working output CH2 (+)
-
Blue (thick) = Working output CH1 (+)
-
Yellow (thin) = Control plus signal CH2
-
Blue (thin) = Control plus signal CH1
-
Yellow/Black (thin) =Control minus signal CH2
-
Blue/black (thin) = control minus signal CH1
-
Maximum power: 40 Watt
Scope of delivery: 1 piece
