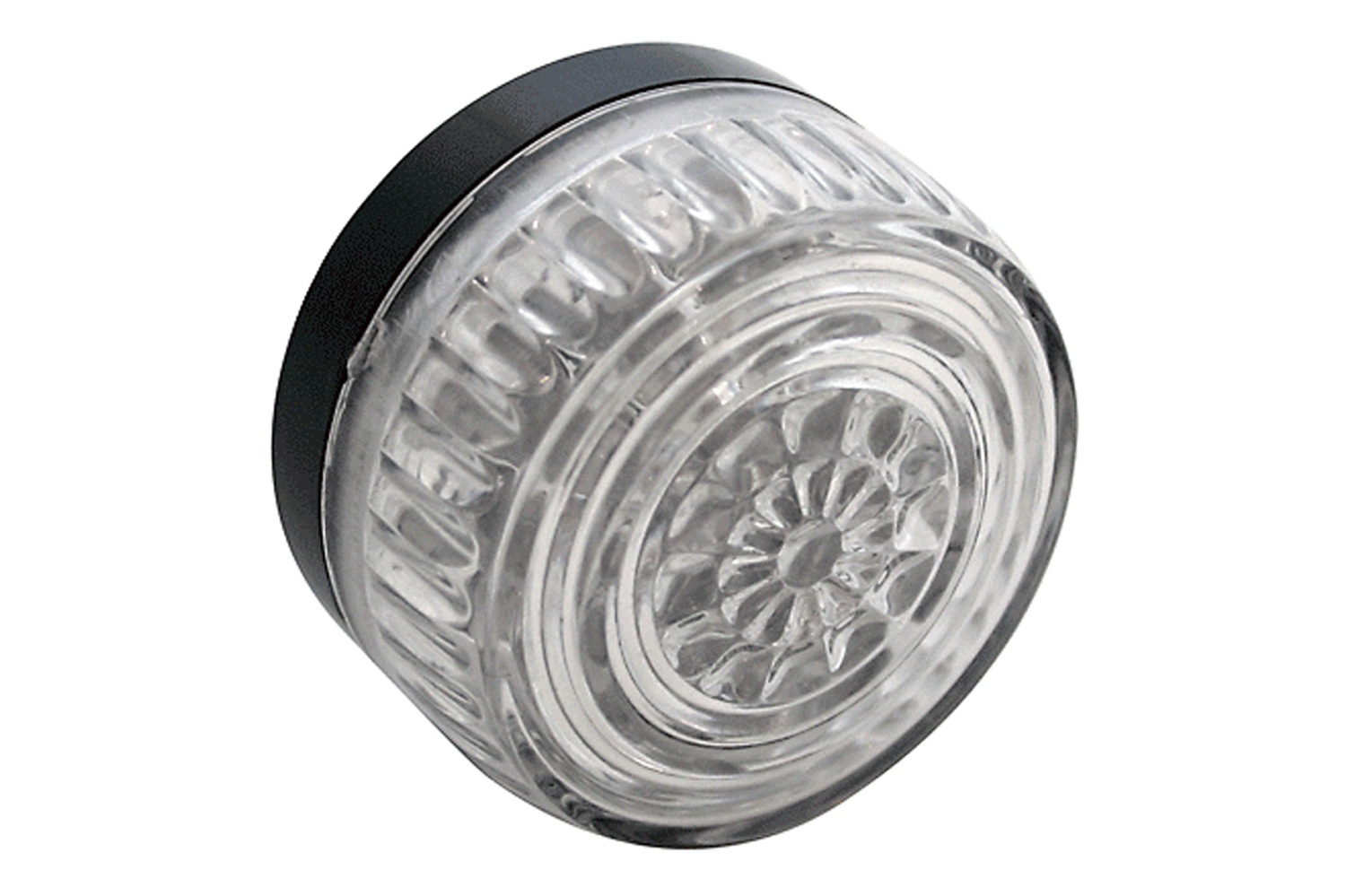

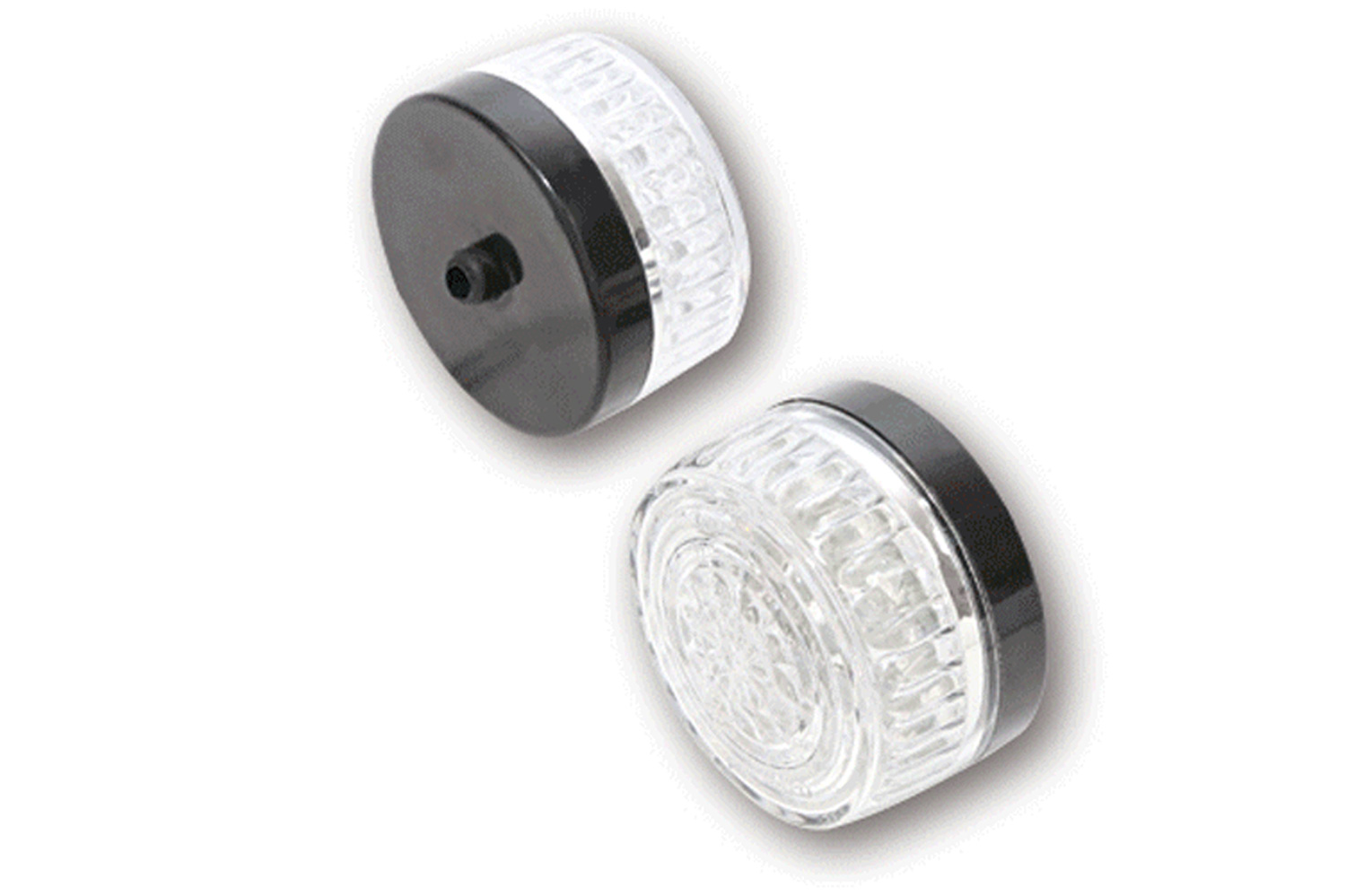

Highsider Colorado LED Indicators and Rear Light Inserts

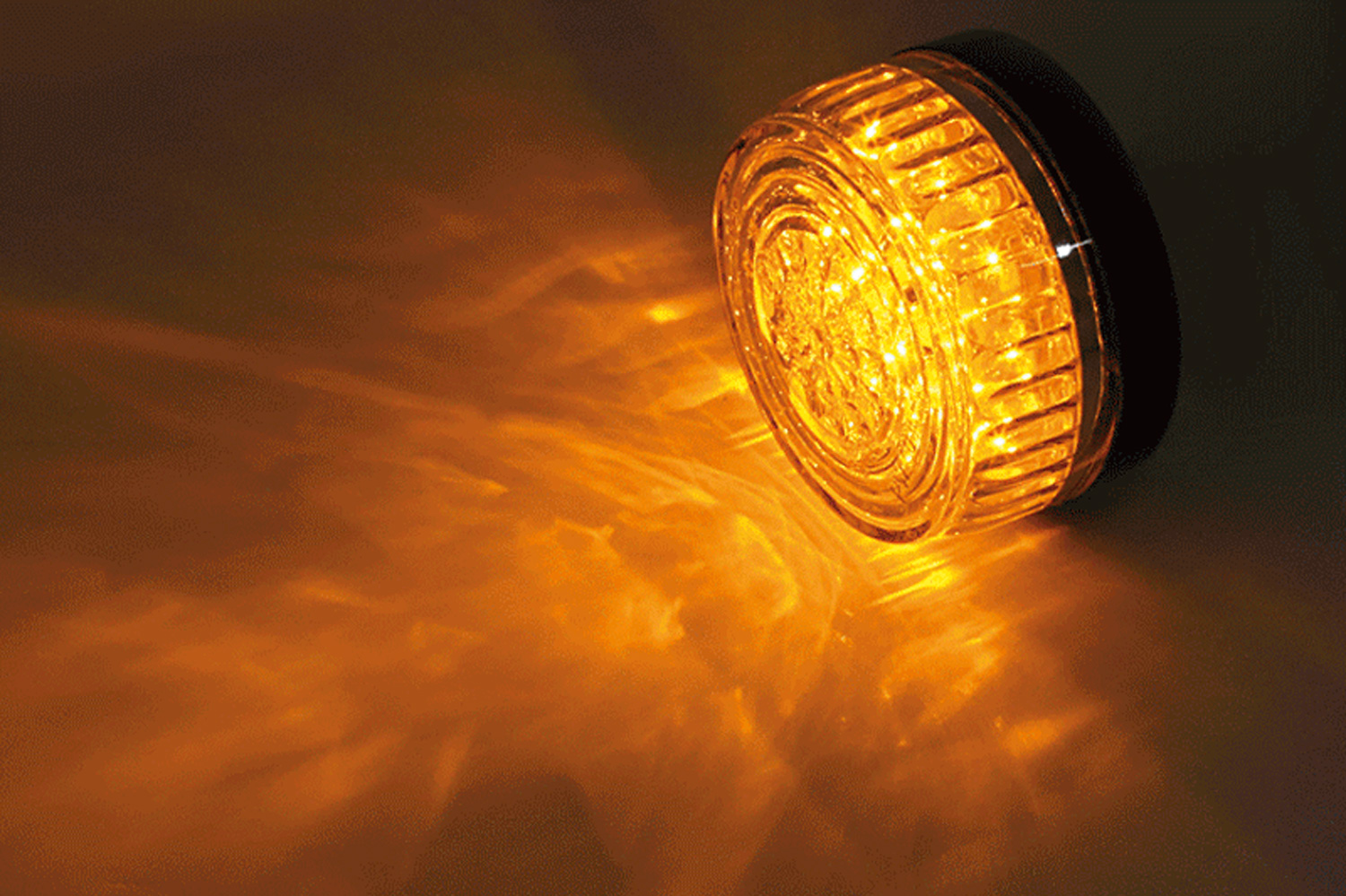

3in1 Highsider Colorado LED Indicators and Rear Light Inserts are designed to be bulit in to bodywork, they come without any metal mounting cups but these can be added.  Outer ring of red LEDs operate as stop and taillight, centre section are orange for indicators.

• One pair supplied
• E-marked
• Diameter 40mm, total depth 23.8mm, (base 6.5mm lens 17.3mm)

• Black cable = Ground (-) for turn signal and rear light
• Blue cable= Turn signal (+)
• Yellow cable = rear light (+)
• Red cable = Brake light (+)
