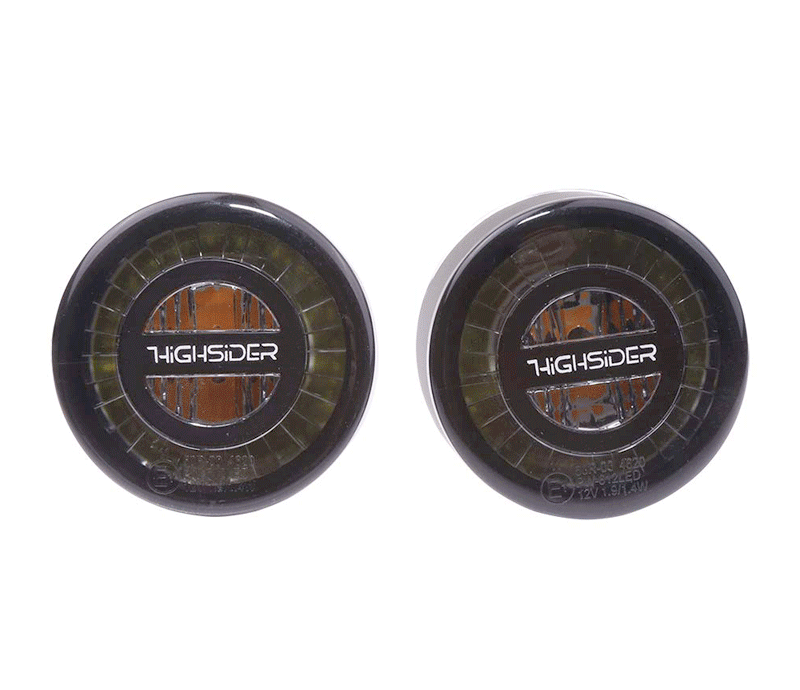

Highsider Rocket Surface Mount LED Indicator Position Light Combination Pair

The 45mm diameter Highsider Rocket LED Indicator with Front Position Light for surface mounting or to build in - come with a black alu ring and smoke lens, E-marked for front installation. A nice upgrade for every motorcycle.

In the center 6 very bright SMD are installed. The outer ring consists of COBs (Chip On Board).

The new LED chip embedding for high-performance LEDs achieves a very high luminance with currently the best possible efficiency and service life.

In this way, higher light values â€‹â€‹than with conventional LEDs can be achieved. This combination comes with a black anodised aluring that fits over the base body.

Dimensions

Length (without bolt) with lens: 18 mm.

Length (without bolt): 15 mm.

Diameter with lens: 45 mm.

Diameter: 43 mm

Fixing bolts: M8 x 1.25 mm, length: 18 mm

Cable assignment:

Black cable = ground (-)
Yellow cable = indicator (+)
White cable: position light (+).

Delivery contents: 1 pair
