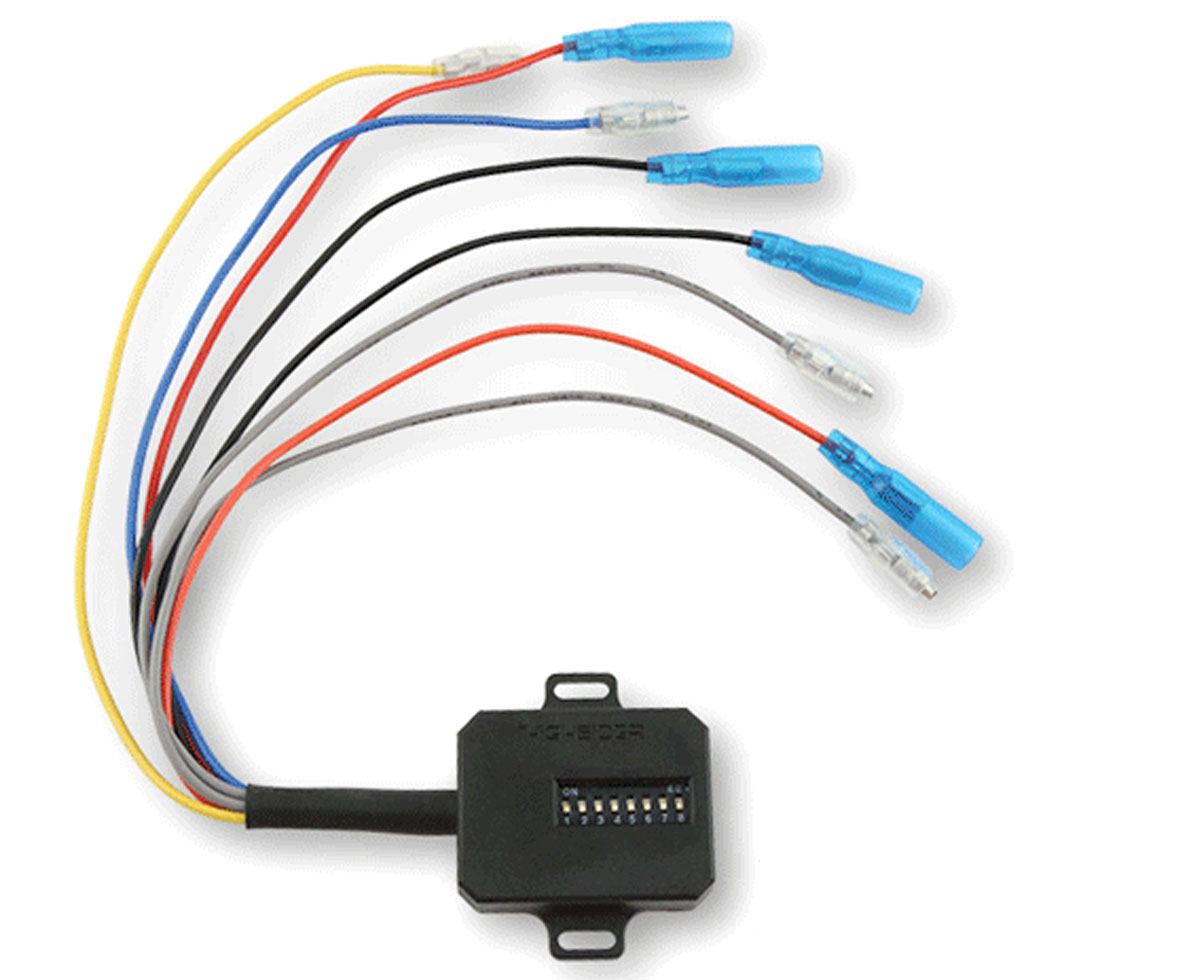

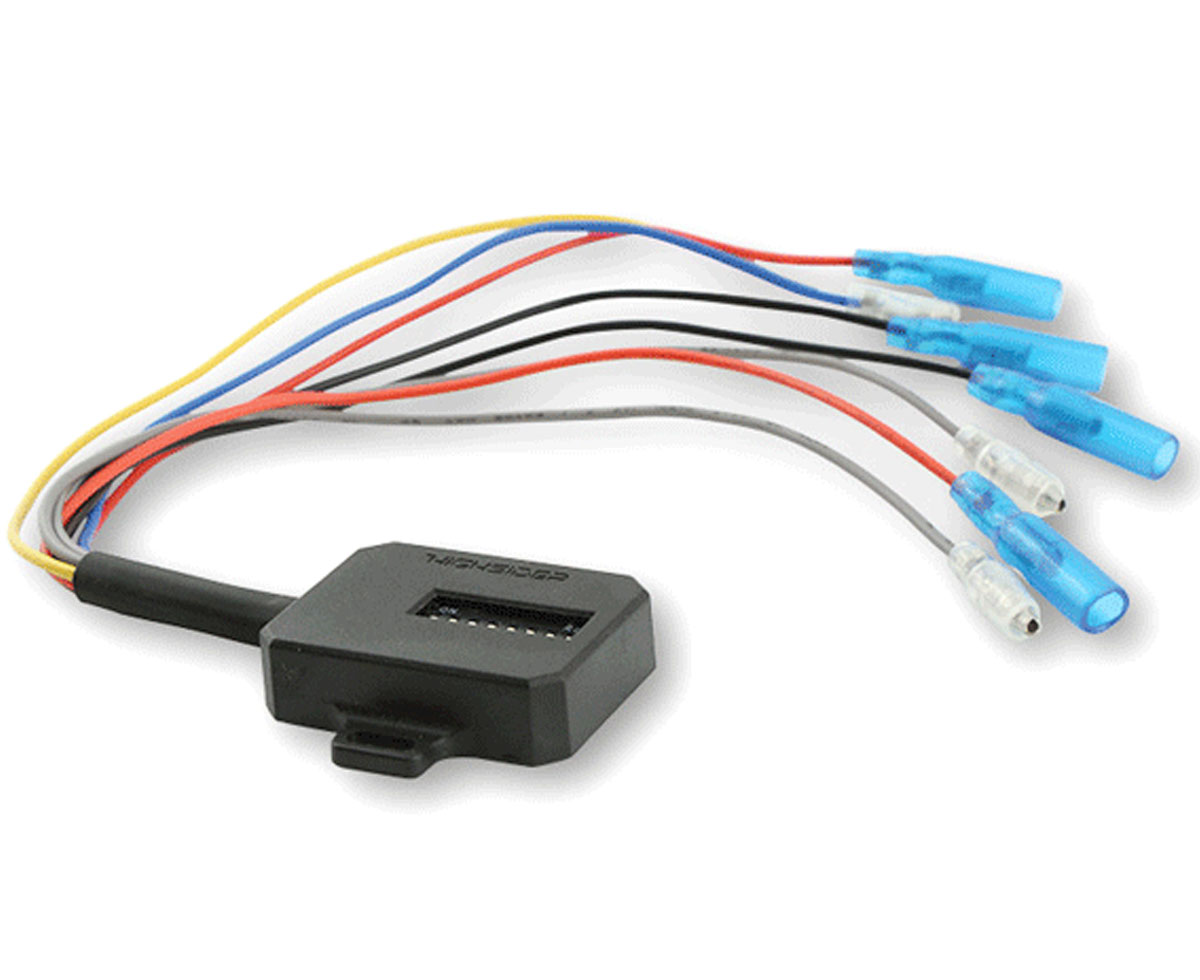

The CBW1 resistor provides a required electrical load for your vehicle, which, if the dip switches are set correctly, will result in elininating the dash warning lights and fast flashing when fitting after market LED indicators.
Our newly developed HIGHSIDER CAN-BUS resistor CBW1 fits most vehicles that have a CAN-BUS system.
In addition, a reliability is given. This means:
If the accessory indicators fail due to an electronic fault, an error message is immediately displayed in the cockpit.
Up to 2 channels can be operated, such as turn signals at the rear left and turn signals at the rear right.
The CBW1 can also be used on vehicles with original LED turn signal equipment.
The following resistance values ​​can be set:
-
150 ohms
-
170 ohms
-
240 ohms
-
300 ohms
-
400 ohms
-
600 ohms
-
1200 ohms
Dimensions:
-
Height = 11mm
-
Width = 31mm (without straps)
-
Width = 46mm (with tabs)
-
Length = 40mm
Cable length = 200mm with pins

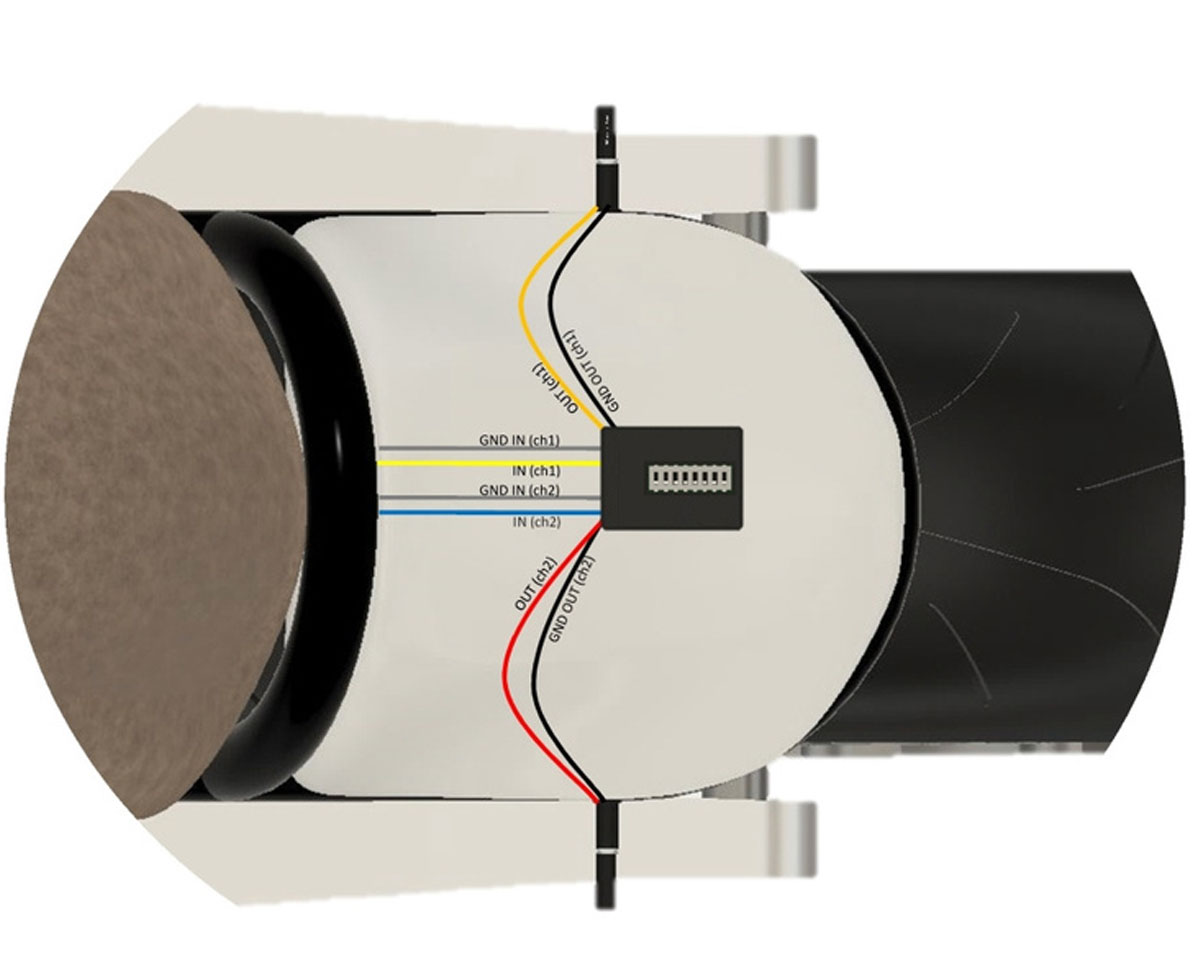

Connections:
-
Yellow = input channel 1 (+)
-
Orange = output channel 1 (+)
-
Blue = input channel 2 (+)
-
Red = output channel 2 (+)
-
Gray = input mass (-)
-
Black = output ground (-)
Scope of delivery: 1 piece
Hints:
• Up to 2 channels can be operated.
• The connection is explained exactly in the operating instructions!
HBTS-CBW
